| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,000 pcs
|
8000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
395 pcs
|
395 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Circuit Application | |
| Connector Type | |
| Contact Current Rating (Max) | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Mating Area Plating Material | |
| Contact Mating Area Plating Material Finish | |
| Contact Mating Area Plating Material Thickness | |
| Contact Shape | |
| Contact Type | |
| Contact Underplating Material | |
| Dielectric Withstanding Voltage (Max) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mating Alignment Type | |
| Mating Retention | |
| Mating Square Post Dimension | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| PCB Contact Termination Area Plating Material | |
| PCB Mount Retention | |
| Packaging Method | |
| Packaging Quantity | |
| Panel Mount Feature | |
| Pitch | |
| Sealable | |
| Shrouding | |
| Square Termination Post & Tail Dimension | |
| Style | |
| Termination | |
| Termination Post & Tail Length |

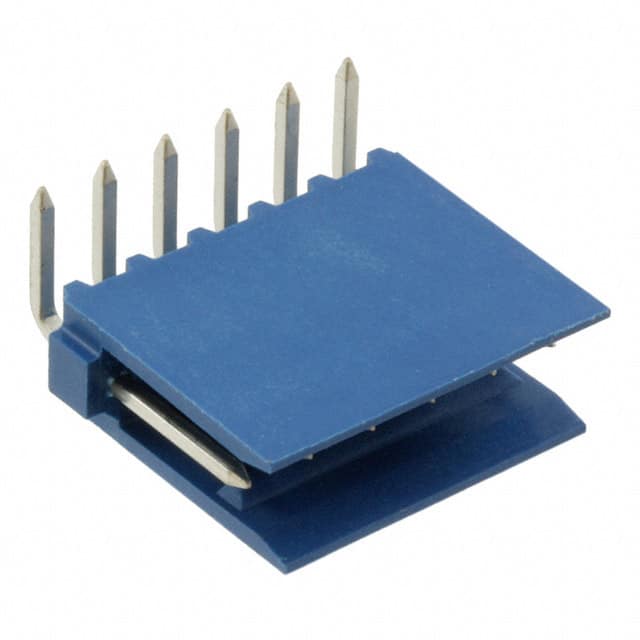

The TE Connectivity 281698-6 is part of the AMPMODU HE13/HE14 series. It is a 6-position, single-row, right-angle PCB header with a 2.54mm pitch. The header is shrouded with a 2-wall design and features a friction lock for secure mating. It is designed for wire-to-board connections.
The header is rated for a maximum current of 3A per contact and a dielectric withstanding voltage of 500V. The insulation resistance is 1000 MΩ. The contacts are made of phosphor bronze with a tin plating and a matte finish. The contact mating area length is 7mm.
The header is mounted through-hole with a right-angle orientation. The insulation material is thermoplastic with a flammability rating of UL94 V-0. The operating temperature range is -40°C to 100°C. The header is not sealable.
This header is suitable for signal circuit applications. The packaging is in a box of 4000 pieces. The RoHS status is compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.21 | $1.21 |
| 10+ | $1.03 | $1.03 |
| 25+ | $0.96 | $0.96 |
| 50+ | $0.92 | $0.92 |
| 100+ | $0.87 | $0.87 |
| 250+ | $0.82 | $0.82 |
| 500+ | $0.78 | $0.78 |
| 1,000+ | $0.74 | $0.74 |
| 2,500+ | $0.70 | $0.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions.
2.54mm (0.100 inches).
3A per contact.
500V maximum.
Through Hole, Right Angle.
-40°C to 100°C.
Yes, RoHS3 compliant per the datasheet.
