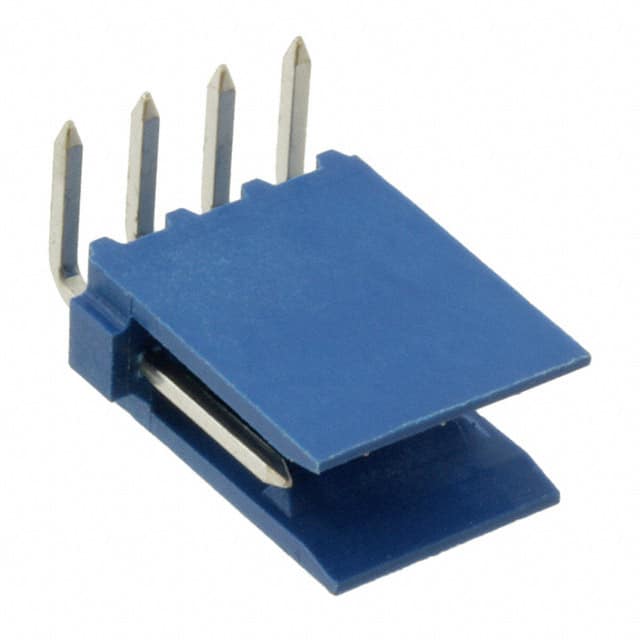

The TE Connectivity 281698-4 is a PCB mount header from the AMPMODU HE 13/HE 14 series. It features 4 positions in a single row with a 2.54mm pitch, and a right-angle mounting orientation for through-hole soldering. The header is partially shrouded with a friction lock fastening system for secure mating.
The contacts are made of phosphor bronze with tin plating on the mating area and termination area, with a nickel underplating. The contact mating area length is 7mm, and the square post dimension is 0.64mm. The insulation is blue thermoplastic rated UL94 V-0, with an insulation height of 5.08mm.
This connector is suitable for wire-to-board signal applications, with a maximum current rating of 3A and a dielectric withstanding voltage of 500V. It operates over a temperature range of -40°C to 100°C. The packaging is in boxes of 2000 pieces.
The header is RoHS compliant, REACH unaffected, and CSA approved (LR7189). It is not sealable and does not include panel mount or PCB mount retention features.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.82 | $0.82 |
| 10+ | $0.70 | $0.70 |
| 100+ | $0.60 | $0.60 |
| 250+ | $0.53 | $0.53 |
| 1,000+ | $0.48 | $0.48 |
| 2,000+ | $0.48 | $0.48 |
| 6,000+ | $0.45 | $0.45 |
| 10,000+ | $0.43 | $0.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This header has 4 positions.
The pitch is 2.54 mm (0.100 inches).
The maximum current rating is 3 A.
The dielectric withstanding voltage is 500 V.
The mounting type is through hole, right angle.
The operating temperature range is -40°C to 100°C.
The fastening type is friction lock.
