| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Length - Mating | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

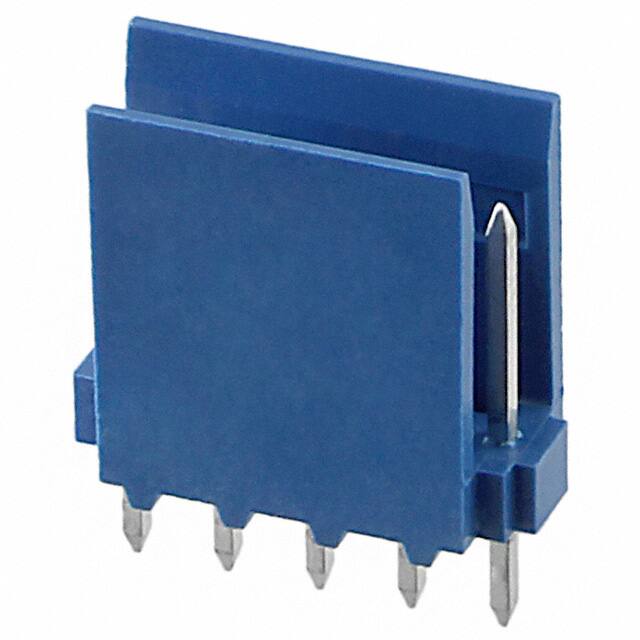

The TE Connectivity 281695-5 is a 5-position, single-row, shrouded header designed for board-to-cable/wire applications. It features a 2.54mm (0.100") pitch and through hole solder termination. The connector is shrouded with a 2-wall design and includes a friction lock for secure mating. Contacts are square-shaped, made of phosphor bronze with a tin finish. The blue thermoplastic insulator has a UL94 V-0 flammability rating and an insulation height of 11.40mm. The mating contact length is 7.00mm with an overall contact length of 12.50mm. This header operates over a temperature range of -40°C to 100°C. It is suitable for use in a variety of electronic interconnection applications where a reliable, polarized connection is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
| 10+ | $1.02 | $1.02 |
| 100+ | $0.87 | $0.87 |
| 500+ | $0.77 | $0.77 |
| 1,000+ | $0.73 | $0.73 |
| 2,000+ | $0.69 | $0.69 |
| 4,000+ | $0.66 | $0.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 positions in a single row.
2.54mm (0.100").
Through hole with solder termination.
Yes, it is shrouded with a 2-wall design and includes a friction lock.
-40°C to 100°C.
Phosphor bronze contacts with a tin finish.
UL94 V-0.
