| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
29,526 pcs
|
29526 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
8,950 pcs
|
8950 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approved Standards | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Mating Area Plating | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mating Post Length | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Overall Contact Length | |
| Packaging Method | |
| Packaging Quantity | |
| Pitch | |
| Post Size | |
| Shrouded End Dimension | |
| Shrouding | |
| Solder Tail Contact Plating | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Post Length |

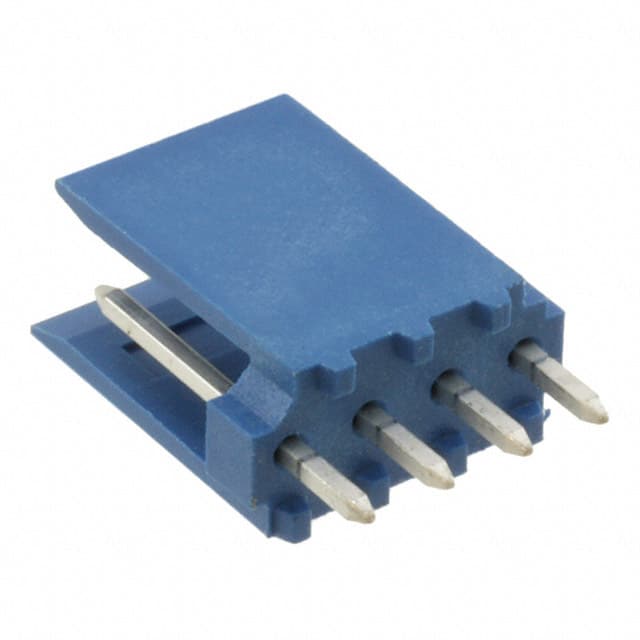

The TE Connectivity AMPMODU HE14 281695-4 is a 4-position, single row, shrouded header designed for wire-to-board interconnections. It features a 2.54mm (0.100") pitch, through hole mounting, and solder termination. The header is shrouded with 2 walls for contact protection and includes a friction lock fastening mechanism for secure mating.
The contacts are made of phosphor bronze with tin plating on the mating area and tin-lead plating on the solder tails. The contact post size is 0.64mm (0.025") square, with a mating post length of 6.75mm (0.266") and a termination post length of 2.9mm (0.114"). The overall contact length is 12.50mm (0.492"). The insulation is blue high-temperature thermoplastic, rated UL94 V-0, with an insulation height of 11.40mm (0.449").
This header is rated for 3A continuous current and operates over a temperature range of -55°C to 105°C. It is approved to CSA LR7189 and UL E28476 standards. The part is packaged in bags of 2000 pieces. The series is part of the AMPMODU HE14 family, commonly used in industrial and consumer electronics applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.03 | $1.03 |
| 10+ | $0.88 | $0.88 |
| 25+ | $0.78 | $0.78 |
| 100+ | $0.75 | $0.75 |
| 250+ | $0.70 | $0.70 |
| 500+ | $0.67 | $0.67 |
| 1,000+ | $0.63 | $0.63 |
| 2,000+ | $0.59 | $0.59 |
| 4,000+ | $0.55 | $0.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The header has 4 positions.
The pitch is 2.54mm (0.100").
The current rating is 3A.
The mounting type is through hole.
The operating temperature range is -55°C to 105°C.
The contact material is phosphor bronze.
The fastening type is friction lock.
