| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19,918 pcs
|
19918 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
99 pcs
|
99 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

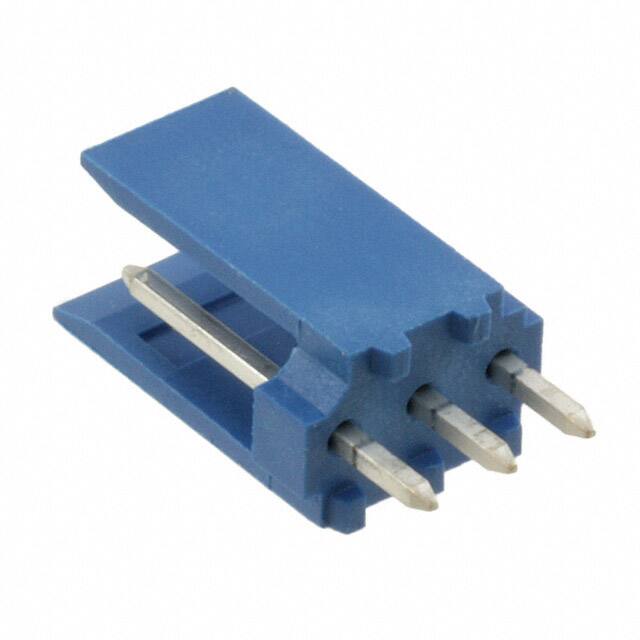

The TE Connectivity 281695-3 is a shrouded 2-wall header designed for board-to-cable/wire connections. It features 3 male pin contacts in a single row with a 2.54mm (0.100") pitch. The header uses through hole mounting and solder termination for reliable PCB attachment.
The contacts are made of phosphor bronze with a tin finish. The square contact pins have a contact length of 7.00mm (0.276") and an overall contact length of 12.50mm (0.492"). The insulation is blue thermoplastic with a flammability rating of UL94 V-0. The header includes a friction lock fastening type for secure mating.
The operating temperature range is -40°C to 100°C. The insulation height is 11.40mm (0.449"). This component is suitable for applications requiring a compact and secure wire-to-board interconnection.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.01 | $1.01 |
| 10+ | $0.84 | $0.84 |
| 100+ | $0.74 | $0.74 |
| 500+ | $0.66 | $0.66 |
| 2,000+ | $0.53 | $0.53 |
| 4,000+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 3 positions, all loaded.
Through hole mounting with solder termination.
Blue thermoplastic with UL94 V-0 flammability rating.
-40°C to 100°C.
Friction lock fastening.
Yes, it has a 2-wall shrouded design.
