| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector System | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mating Alignment Type | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| PCB Mount Retention | |
| Pitch | |
| Shrouding | |
| Storage Temperature | |
| Style | |
| Termination | |
| UL Flammability Rating |

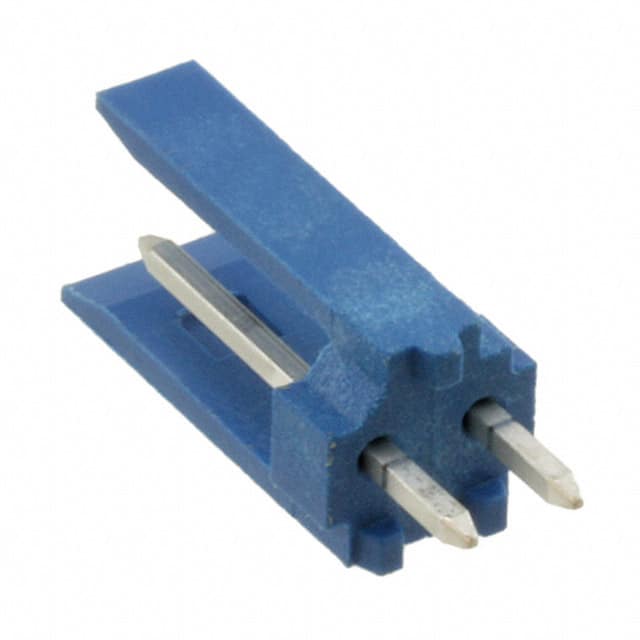

The TE Connectivity 281695-2 (TE internal number 1-281695-2) is a wire-to-board PCB mount header from the AMPMODU HE 13/HE 14 series. This connector features a 2-position, single-row configuration with a 2.54mm centerline pitch, making it suitable for compact board-level interconnections.
The header is partially shrouded with a 2-wall design and includes a friction lock for secure mating. It uses through-hole termination with solder tails. The blue thermoplastic insulator has a UL94 V-0 flammability rating and supports an operating temperature range of -40°C to +100°C. Contacts are made of phosphor bronze with tin plating on both the mating and termination areas.
Electrical ratings include a 3A maximum current per contact, 500V dielectric withstanding voltage, and 1000 MΩ insulation resistance. This connector is designed for signal circuit applications and is rated as non-sealable. It is supplied in box packaging with a quantity of 3000 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.06 | $1.06 |
| 10+ | $0.89 | $0.89 |
| 25+ | $0.86 | $0.86 |
| 100+ | $0.80 | $0.80 |
| 250+ | $0.73 | $0.73 |
| 500+ | $0.66 | $0.66 |
| 1,000+ | $0.60 | $0.60 |
| 2,500+ | $0.56 | $0.56 |
| 5,000+ | $0.55 | $0.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 281695-2 has 2 positions in a single row.
The pitch (centerline spacing) is 2.54mm (0.100 inches).
Each contact is rated for a maximum current of 3A.
This header uses through-hole mounting with solder termination.
Yes, it is a partially shrouded header with a 2-wall design.
The operating temperature range is -40°C to +100°C.
The thermoplastic insulation is rated UL94 V-0.
