| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,500 pcs
|
1500 pcs | On Request | 100 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

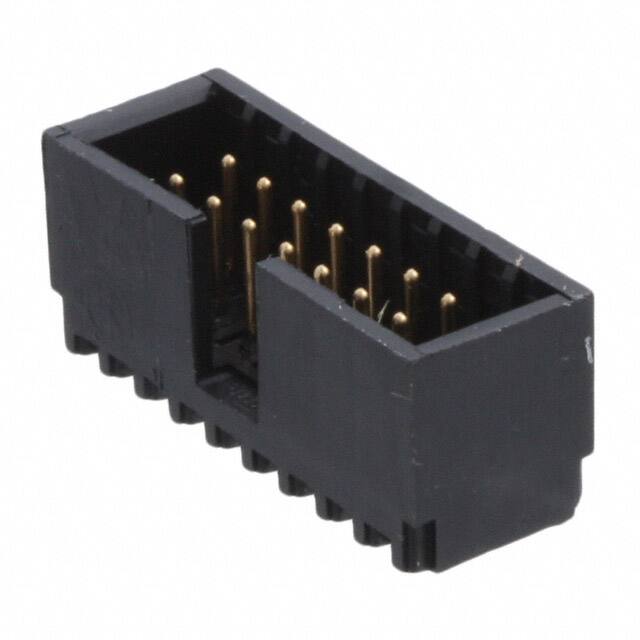

The TE Connectivity 281272-1 is a 14-position rectangular header designed for board-to-cable/wire applications. It features a shrouded 4-wall design with a push-pull fastening type and a keying slot for alignment. The connector uses through hole mounting with solder termination.
Key specifications include a 2.54mm pitch, 2 rows with all positions loaded, and a row spacing of 2.54mm. The insulation is black glass-filled PBT with a height of 10.20mm. Contacts are male pins made of brass with a tin finish of 30.0µin thickness and a contact length of 3.00mm.
This header is suitable for applications requiring a reliable, polarized connection with keying to prevent mis-mating. The through hole design provides robust mechanical attachment to the PCB.
| Qty | Low | High |
|---|---|---|
| 500+ | $1.40 | $1.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The header has 14 positions, all loaded, arranged in 2 rows.
The pitch is 2.54mm (0.100 inches).
It is a through hole mounting type with solder termination.
The contacts are made of brass with a tin finish of 30.0µin thickness.
Yes, it is a shrouded header with a 4-wall design.
