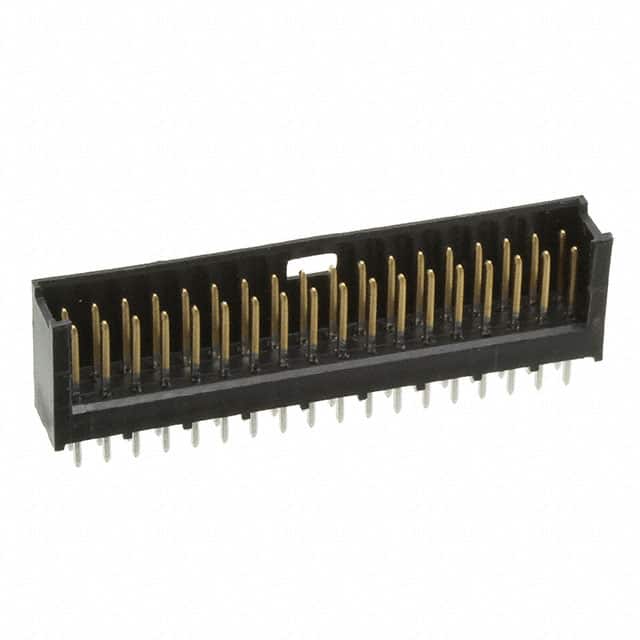

281019-2 TE Connectivity 281019-2 is an 18-position, dual-row, shrouded header with 2.54mm pitch, through-hole mounting, and tin-plated brass contacts.
Mfr Part #:

281019-2

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 281019-2 is an 18-position, dual-row, shrouded header with 2.54mm pitch, through-hole mounting, and tin-plated brass contacts.
✓ Total Stock: 118 pcs
$ Price Range: $2.95 - $3.44

281019-2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
118 pcs
On Request
118 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

281019-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Halogen Free
Industrial Grade
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

281019-2 Description

Short technical summary and product information.

The TE Connectivity 281019-2 is a shrouded header from the AMPMODU II series, designed for board-to-board or cable-to-board interconnects. It features 18 positions arranged in 2 rows with a 2.54mm pitch and 2.54mm row spacing. The header uses through-hole solder termination and is rated for 3A current and 40V voltage.



The connector has a black thermoplastic housing with a UL94 V-0 flammability rating and a detent lock fastening system for secure mating. The square male pins are made of brass with a matte tin finish (3-5µm over nickel) and have a mating contact length of 3.50mm. The operating temperature range is -40°C to 80°C.



This shrouded 3-wall design provides pin protection and alignment, making it suitable for applications requiring reliable connections in moderate environments. The header is RoHS3 compliant and has an MSL of 1 (unlimited).

281019-2 Quick Information

Product Type: Header, Male Pins
Series: AMPMODU II
Canonical Name: TE Connectivity AMPMODU II Shrouded Header, 18 Position, 2.54mm Pitch, Through Hole, Straight
Subcategory: Shrouded Header

281019-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

281019-2 Estimated Pricing

Qty Low High
25+ $2.95 $2.95
750+ $3.44 $3.44

Estimated market price range - modelled values for guidance only, not live distributor offers.

281019-2 Features

  • 18 positions in 2 rows with 2.54mm pitch.
  • Rated for 3A current and 40V voltage.
  • Through-hole solder termination for secure mounting.
  • Shrouded 3-wall design protects male pins.
  • UL94 V-0 flame retardant thermoplastic housing.

281019-2 Applications

  • Board-to-board interconnects in electronic assemblies.
  • Cable-to-board connections in industrial equipment.
  • General purpose signal and power distribution.

281019-2 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the 281019-2 header?

The pitch is 2.54mm (0.100").

How many positions does the 281019-2 have?

It has 18 positions, all loaded, in 2 rows.

What is the current rating of the 281019-2?

The current rating is 3A.

What is the voltage rating of the 281019-2?

The voltage rating is 40V.

What is the mounting type for the 281019-2?

It is a through-hole mounting connector with solder termination.

What is the operating temperature range?

The operating temperature range is -40°C to 80°C.

What contact finish does the 281019-2 use?

The contact finish is matte tin, 3-5µm over 1.27µm nickel, on brass contacts.
