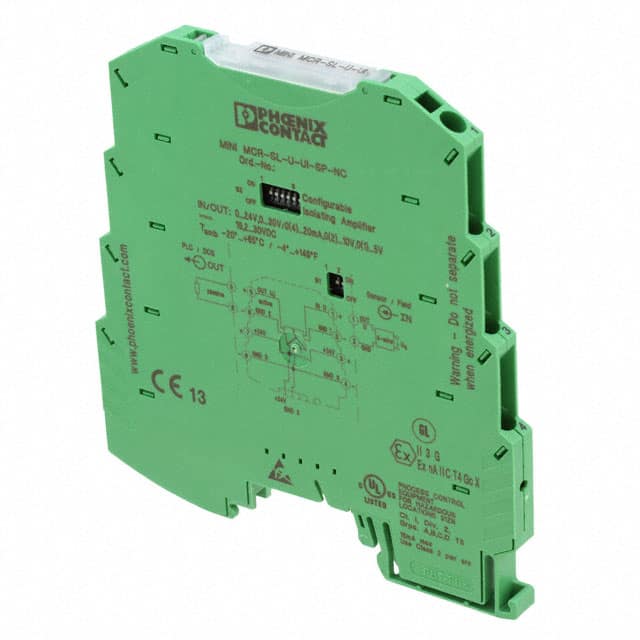

2810078 The 2810078 is a configurable 3-way isolating signal conditioner from Phoenix Contact. It features 0-30V input range, 0-20mA/0-10V configurable output, and DIN rail mounting with spring terminal connections.
Mfr Part #:

2810078

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
The 2810078 is a configurable 3-way isolating signal conditioner from Phoenix Contact. It features 0-30V input range, 0-20mA/0-10V configurable output, and DIN rail mounting with spring terminal connections.
✓ Total Stock: 1 pcs

2810078 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2810078 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Input Range (Current, Voltage)
Input Type
Isolation
Mounting Type
Operating Temperature
Output Range
Output Type
SVHC Present
Termination Style
Type
Voltage
Width
View Similar Products (0)

2810078 Description

Short technical summary and product information.

The MINI MCR-SL-U-UI is a configurable 3-way isolating amplifier used to electrically isolate, condition, amplify, and filter standard signals. It accepts input signals of 0-24 V and 0-30 V, and provides configurable output signals including 0-20 mA, 4-20 mA, 0-10 V, 2-10 V, 0-5 V, and 1-5 V. Configuration is via DIP switches accessible on the side of the housing. The power supply range is 19.2-30 V DC, and can be supplied via terminal blocks or DIN rail connector. The module is 6.2 mm wide and mounts on DIN rail. It has Ex approval for Zone 2 (nA) potentially explosive atmospheres. The device features spring terminal connections and provides 1500 V isolation test voltage. Operating temperature range is -20°C to 65°C.

2810078 Quick Information

Product Type: Signal Conditioner
Canonical Name: MINI MCR-SL-U-UI Signal Conditioner
Subcategory: Isolating Amplifier

2810078 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

2810078 Features

  • Configurable 3-way isolating amplifier.
  • Input range 0-30 V, output configurable to 0-20 mA or 0-10 V.
  • DIN rail mount with 6.2 mm width and spring terminals.
  • 1500 V galvanic isolation test voltage.
  • Ex zone 2 (nA) approval for hazardous areas.

2810078 Applications

  • Isolate and condition analog voltage signals from sensors.
  • Convert voltage signals to standard current or voltage outputs.
  • Used in industrial automation and process control systems.
  • Suitable for use in potentially explosive atmospheres (Zone 2).

2810078 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range?

The supply voltage range is 19.2 to 30 V DC, with nominal 24 V DC.

What is the operating temperature range?

The operating temperature range is -20°C to 65°C.

Is the device RoHS compliant?

RoHS3 compliant (unverified).

What is the mounting type?

DIN rail, width 6.2 mm, with spring terminal connections.

What input signals can be processed?

It accepts voltage signals of 0-24 V and 0-30 V.

What output signals are available?

Configurable outputs: 0-20 mA, 4-20 mA, 0-10 V, 2-10 V, 0-5 V, and 1-5 V.

Does the device have hazardous area approvals?

Yes, Ex zone 2 (nA) approval for potentially explosive atmospheres.
