| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17,524 pcs
|
17524 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

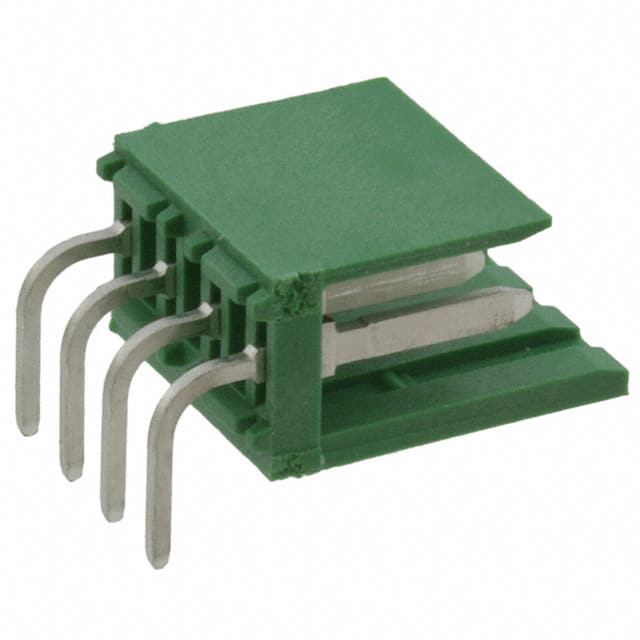

The TE Connectivity 280616-1 is a rectangular connector header designed for board-to-board or cable applications. It features a shrouded 2-wall design with a detent lock fastening system for secure mating.
This header has 4 positions arranged in a single row with a 3.96mm pitch. It uses male pin contacts made of brass with a tin finish. The insulation is green polycarbonate, glass filled, with a flammability rating of UL94 V-0.
The component is mounted via through-hole right-angle orientation and terminated by soldering. The contact length is 10.00mm and the insulation height is 8.80mm.
This connector is suitable for applications requiring a reliable, polarized connection with a detent lock. The right-angle design allows for low-profile board-to-board connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.39 | $1.39 |
| 10+ | $1.17 | $1.17 |
| 25+ | $1.13 | $1.13 |
| 100+ | $1.06 | $1.06 |
| 250+ | $0.96 | $0.96 |
| 500+ | $0.90 | $0.90 |
| 1,000+ | $0.81 | $0.81 |
| 2,500+ | $0.75 | $0.75 |
| 5,000+ | $0.73 | $0.73 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 4 positions.
The pitch is 3.96mm.
Through hole, right angle.
Detent lock.
Tin.
Polycarbonate, glass filled with UL94 V-0 rating.
RoHS3 compliant (unverified).
