| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16,800 pcs
|
16800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

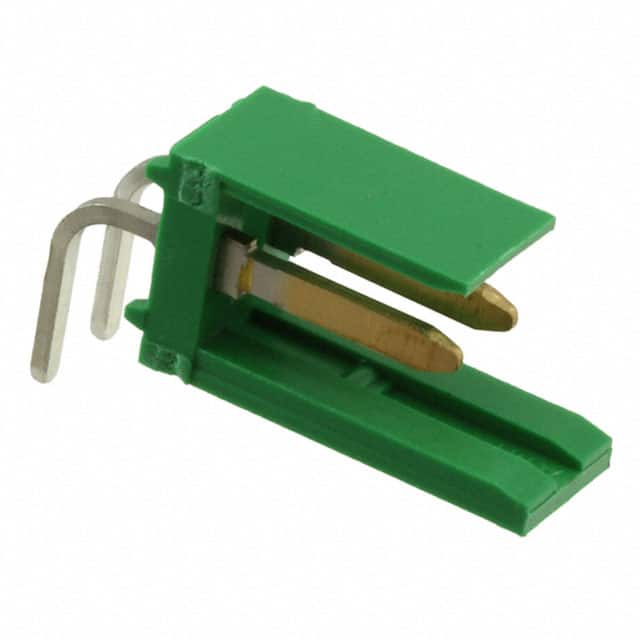

The TE Connectivity 280615-2 is a 2-position, single row, right-angle header designed for board-to-board or cable applications. It features a 3.96mm pitch and uses male pin contacts made of brass with a tin finish of 14.5µin. The connector is shrouded with 2 walls and includes a detent lock fastening system for secure mating.
The insulator is molded from glass-filled polycarbonate in green color, rated UL94 V-0 for flammability. Mounting is through hole, right angle, with solder termination. The contact length is 10.00mm and the insulator height is 8.80mm. All 2 positions are loaded.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.74 | $1.74 |
| 10+ | $1.48 | $1.48 |
| 100+ | $1.26 | $1.26 |
| 500+ | $1.12 | $1.12 |
| 1,000+ | $1.11 | $1.11 |
| 5,000+ | $0.95 | $0.95 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 3.96mm (0.156 inches).
It has 2 positions, all loaded, in a single row.
It is through hole, right angle mounting with solder termination.
