| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
179 pcs
|
179 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

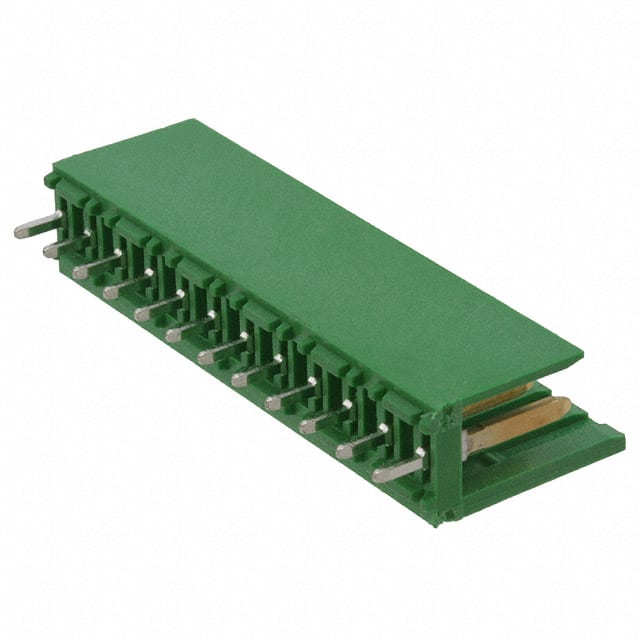

The TE Connectivity 280614-2 is a 12-position, single-row shrouded header designed for board-to-board or cable applications. It features a 3.96mm (0.156") pitch and a detent lock fastening system for secure mating. The header uses male pin contacts made of brass with a tin finish (15.0µin thickness) and rectangular contact shape.
This through hole component is terminated via solder and features a green polycarbonate, glass filled insulator with a UL94 V-0 flammability rating. The overall contact length is 0.642" (16.30mm) with a contact length of 10.00mm (0.394"). The insulation height measures 23.20mm (0.913").
The shrouded 2-wall design provides pin protection and polarization during mating. This connector is suitable for applications requiring a reliable, polarized interconnection.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.92 | $10.92 |
| 10+ | $9.24 | $9.24 |
| 100+ | $8.72 | $8.72 |
| 200+ | $7.41 | $7.41 |
| 600+ | $6.89 | $6.89 |
| 1,000+ | $6.62 | $6.62 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 12 positions, all loaded, arranged in a single row.
The pitch is 3.96mm (0.156 inches).
The connector is through hole mounted with solder termination.
The contacts are made of brass with a tin finish of 15.0 microinches (0.38 micrometers).
Yes, it has a 2-wall shrouded design with a detent lock fastening type.
The insulator is green, made of glass-filled polycarbonate, with a UL94 V-0 flammability rating.
