| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,242 pcs
|
8242 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

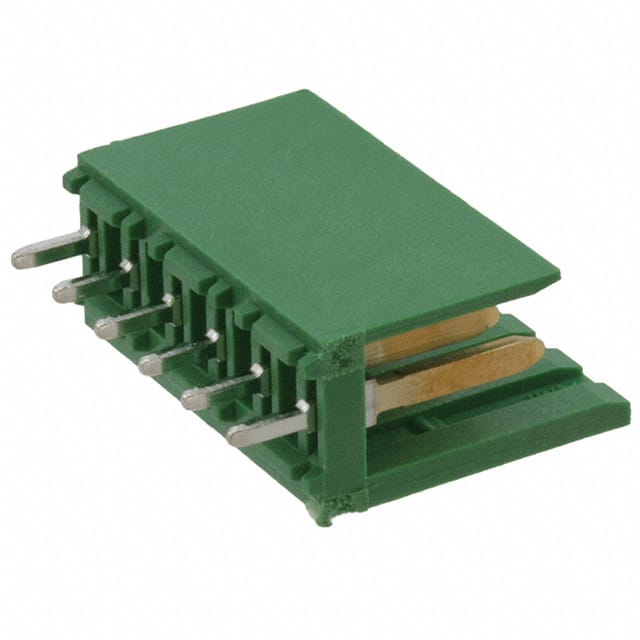

The TE Connectivity 280611-2 is a 6-position, single row, shrouded header with male pins. It has a 3.96mm (0.156") pitch and is designed for through hole mounting with solder termination. The connector is shrouded with two walls and includes a detent lock fastening mechanism for secure mating. The contacts are made of brass with a tin finish of 15.0µin (0.38µm), featuring a rectangular contact shape. The insulator is made of green polycarbonate, glass filled material, rated UL94 V-0 for flammability. The insulation height is 23.20mm (0.913"), contact length is 10.00mm (0.394"), and overall contact length is 0.642" (16.30mm). This connector is suitable for board-to-board or cable applications, providing reliable connections in a variety of electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.47 | $3.47 |
| 10+ | $3.16 | $3.16 |
| 25+ | $2.99 | $2.99 |
| 100+ | $2.77 | $2.77 |
| 250+ | $2.43 | $2.43 |
| 500+ | $2.35 | $2.35 |
| 1,000+ | $2.09 | $2.09 |
| 2,500+ | $1.96 | $1.96 |
| 5,000+ | $1.85 | $1.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions, all loaded in a single row.
3.96mm (0.156 inches).
Through hole with solder termination.
Yes, it is shrouded with 2 walls.
Tin with 15.0µin (0.38µm) thickness.
Green polycarbonate, glass filled with UL94 V-0 rating.
Detent lock.
