| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21,400 pcs
|
21400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
104 pcs
|
104 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Overall Contact Length | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

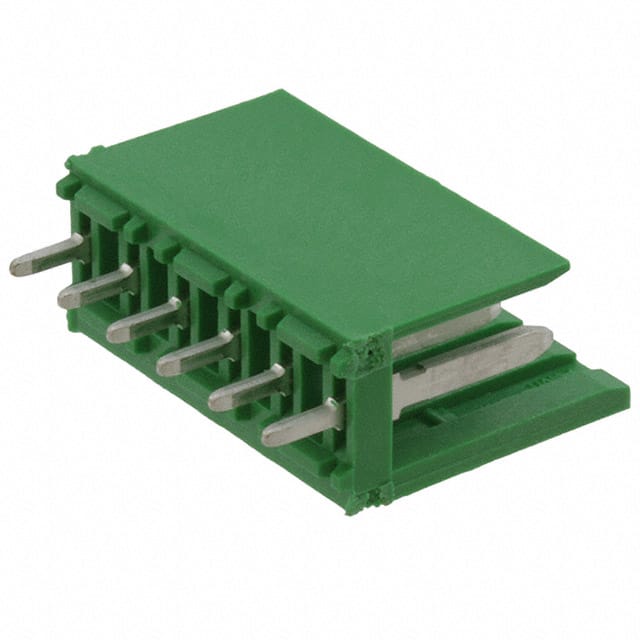

The TE Connectivity 280611-1 is a vertical through hole header featuring 6 positions in a single row with a 3.96mm pitch. It utilizes male pin contacts made of brass with a tin finish, housed in a glass-filled polycarbonate green insulator with a UL94 V-0 flammability rating. The connector is shrouded with 2 walls and includes a detent lock for secure mating. It is suitable for board-to-board or cable applications.
The overall contact length is 16.30mm with a mating contact length of 10.00mm and an insulation height of 23.20mm. The rectangular contact shape supports solder termination for reliable through hole mounting. This header is designed for use in power and signal interconnect applications where a rugged, polarized connection is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.02 | $1.02 |
| 10+ | $0.86 | $0.86 |
| 25+ | $0.85 | $0.85 |
| 100+ | $0.74 | $0.74 |
| 250+ | $0.73 | $0.73 |
| 500+ | $0.65 | $0.65 |
| 1,000+ | $0.61 | $0.61 |
| 2,500+ | $0.58 | $0.58 |
| 5,000+ | $0.54 | $0.54 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 3.96mm (0.156 inches).
It has 6 positions, all loaded, in a single row.
Through hole with solder termination.
Yes, it has a shrouded 2 wall design.
Detent lock for secure mating.
Contact material is brass with a tin finish.
The insulator is glass-filled polycarbonate with a UL94 V-0 flammability rating.
