| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,810 pcs
|
9810 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,522 pcs
|
3522 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
149 pcs
|
149 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

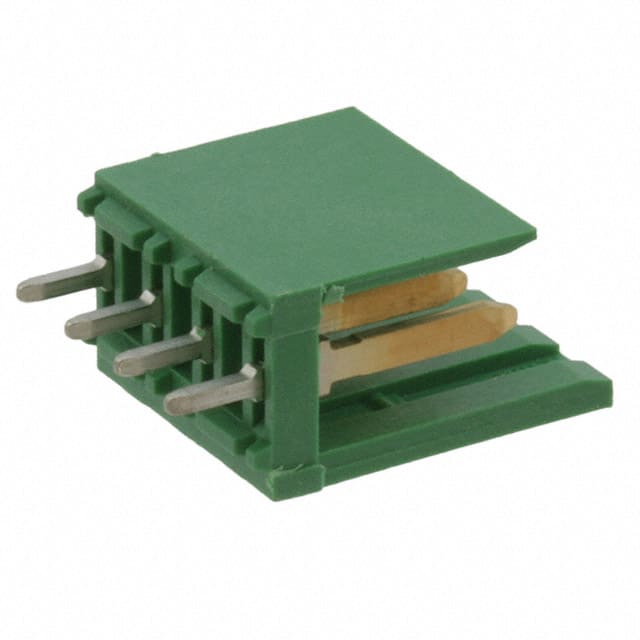

The TE Connectivity 280610-2 is a 4-position, single-row header designed for board-to-board or cable applications. It features a 3.96mm pitch and through-hole mounting with solder termination. The connector is shrouded with a 2-wall design and includes a detent lock fastening system for secure mating.
The contacts are made of brass with a tin finish (15.0µin thickness) and have a rectangular shape. The insulator is green polycarbonate, glass-filled, with a flammability rating of UL94 V-0. The overall contact length is 0.642 inches (16.30mm), and the insulation height is 23.20mm.
This header is suitable for applications requiring a reliable, polarized connection in a compact form factor. The detent lock provides additional retention force, making it ideal for environments where vibration resistance is needed.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.36 | $2.36 |
| 10+ | $2.01 | $2.01 |
| 100+ | $1.71 | $1.71 |
| 500+ | $1.52 | $1.52 |
| 1,000+ | $1.45 | $1.45 |
| 2,500+ | $1.37 | $1.37 |
| 5,000+ | $1.29 | $1.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 3.96mm (0.156 inches).
It has 4 positions in a single row, all loaded.
Through-hole mounting with solder termination.
Brass contacts with a tin finish of 15.0µin (0.38µm).
Yes, it has a shrouded 2-wall design with a detent lock fastening.
Green glass-filled polycarbonate with UL94 V-0 rating.
