280609-2 TE Connectivity 280609-2 is a 2-position, single-row, shrouded header with 3.96mm pitch, through-hole mounting, and tin-plated brass contacts.
Mfr Part #:

280609-2

Available from 3 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 280609-2 is a 2-position, single-row, shrouded header with 3.96mm pitch, through-hole mounting, and tin-plated brass contacts.
✓ Total Stock: 2,781 pcs
$ Price Range: $0.64 - $1.16

280609-2 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
2,384 pcs
On Request
2384 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
396 pcs
On Request
396 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

280609-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Overall Contact Length
Pitch
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

280609-2 Description

Short technical summary and product information.

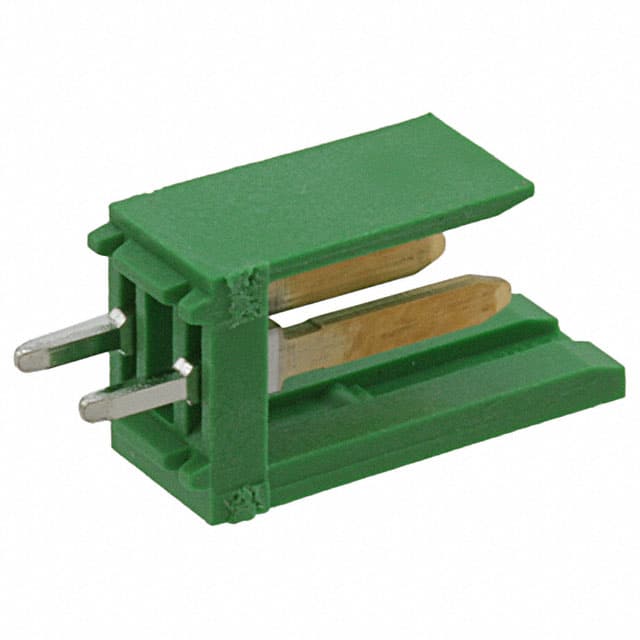

The TE Connectivity 280609-2 is a 2-position, single-row, shrouded header designed for board-to-board or cable applications. It features a 3.96mm pitch and through-hole solder termination for reliable mechanical and electrical connections.



The connector uses a detent lock fastening system and is housed in a green, glass-filled polycarbonate insulator with a UL94 V-0 flammability rating. Contacts are made of brass with a tin finish (14.5µin thickness) and have a rectangular shape. The overall contact length is 16.30mm, with a contact length of 10.00mm and an insulation height of 23.20mm.

280609-2 Quick Information

Product Type: Header, Male Pins
Canonical Name: TE Connectivity 280609-2 Header, Male Pins, 2 Position, 3.96mm Pitch, Through Hole
Subcategory: Male Pins

280609-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

280609-2 Estimated Pricing

Qty Low High
1+ $1.16 $1.16
10+ $0.99 $0.99
100+ $0.84 $0.84
500+ $0.75 $0.75
1,000+ $0.70 $0.70
2,000+ $0.66 $0.66
5,000+ $0.64 $0.64

Estimated market price range - modelled values for guidance only, not live distributor offers.

280609-2 Features

  • 2-position single-row shrouded header.
  • 3.96mm pitch for compact designs.
  • Through-hole solder termination.
  • Detent lock fastening for secure mating.
  • UL94 V-0 rated glass-filled polycarbonate housing.

280609-2 Applications

  • Board-to-board and cable connections.
  • General purpose industrial electronics.
  • Power and signal distribution systems.
  • Consumer appliance interconnect applications.

280609-2 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the 280609-2 have?

The 280609-2 has 2 positions in a single row, all positions loaded.

What is the pitch of this header?

The pitch is 3.96mm.

What is the mounting type for the 280609-2?

It is a through-hole mounting connector with solder termination.

What is the contact material and finish?

Contacts are made of brass with a tin finish of 14.5µin thickness.

What is the flammability rating of the insulator?

The insulator material has a UL94 V-0 flammability rating.
