| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,750 pcs
|
4750 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

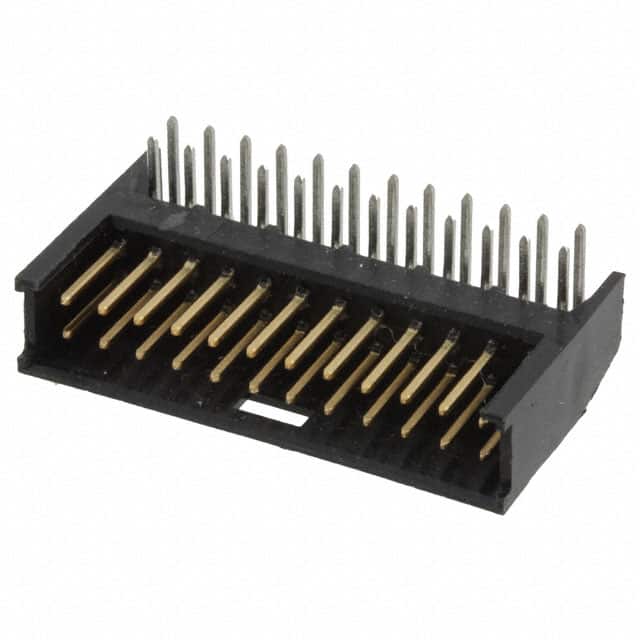

The TE Connectivity 280522-2 is a 24-position, 2-row header designed for board-to-board or cable connections. It features a 2.54mm (0.100") pitch and 0.100" row spacing, with all positions loaded. The connector uses a through hole, right angle mounting style with solder termination, making it suitable for compact PCB layouts.
The header is shrouded with a 3-wall design and includes a detent lock for secure mating. Contacts are made of brass with a tin plating of 15.0µin (0.38µm) and a square shape, offering a contact length of 6.60mm (0.260"). The insulator is black thermoplastic with a UL94 V-0 flammability rating, ensuring durability and safety.
Electrically, the connector is rated for 3A current and 40V voltage, with an operating temperature range of -40°C to 80°C. This makes it suitable for a variety of industrial and commercial applications where reliable interconnection is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.48 | $5.48 |
| 10+ | $4.66 | $4.66 |
| 50+ | $3.71 | $3.71 |
| 250+ | $3.51 | $3.51 |
| 1,000+ | $3.40 | $3.40 |
| 2,500+ | $3.16 | $3.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
24 positions.
2.54mm (0.100").
3A.
40V.
Through hole, right angle.
Yes, shrouded with 3 walls.
-40°C to 80°C.
