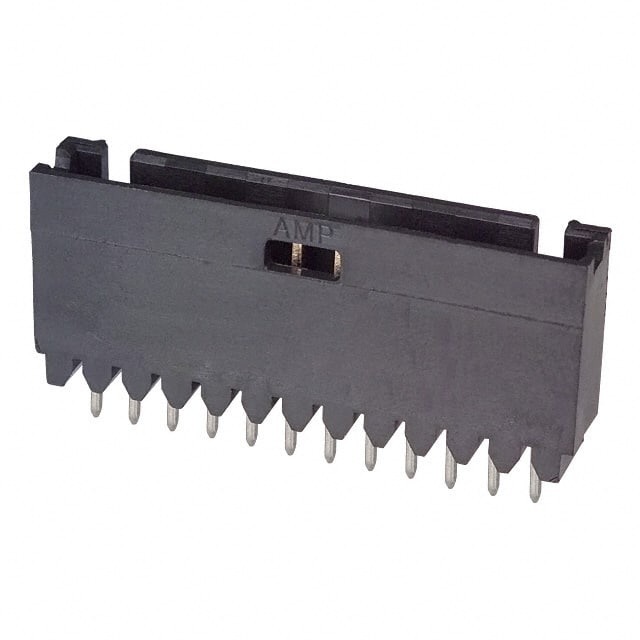

The TE Connectivity 280520-2 is a 12-position, single-row, shrouded header designed for board-to-board or cable-to-board applications. It features a 2.54mm pitch and through-hole solder termination, making it suitable for standard PCB layouts.
The header uses square, tin-plated brass contacts with a contact finish thickness of 15.0µin (0.38µm). The insulation is black thermoplastic rated UL94 V-0, with an insulation height of 12.60mm. The overall contact length is 14.30mm, and the contact length is 6.60mm.
Electrical ratings include a current rating of 3A and a voltage rating of 40V. The operating temperature range is -40°C to 80°C. A detent lock fastening type provides secure mating.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.49 | $3.49 |
| 10+ | $3.00 | $3.00 |
| 25+ | $2.97 | $2.97 |
| 100+ | $2.55 | $2.55 |
| 250+ | $2.42 | $2.42 |
| 500+ | $2.27 | $2.27 |
| 1,000+ | $2.21 | $2.21 |
| 2,500+ | $1.96 | $1.96 |
| 5,000+ | $1.83 | $1.83 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 280520-2 has 12 positions in a single row.
The pitch is 2.54mm (0.100 inches).
The current rating is 3A.
The voltage rating is 40V.
The mounting type is through hole.
The operating temperature range is -40°C to 80°C.
The contact finish is tin with a thickness of 15.0µin (0.38µm).
