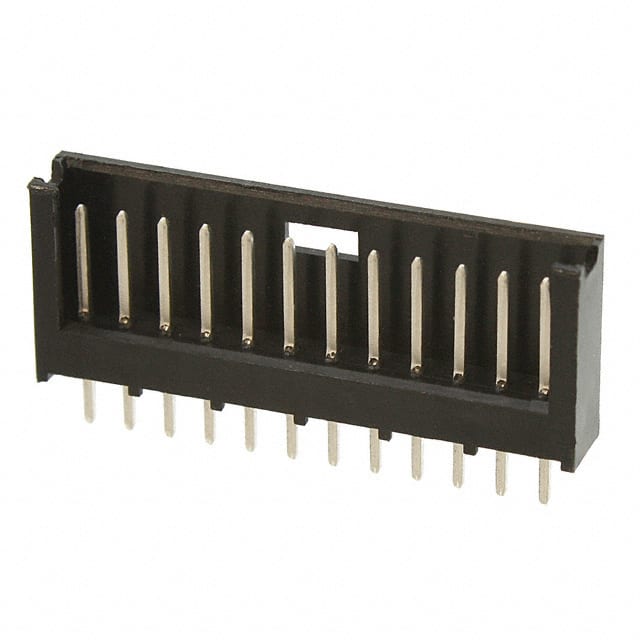

The TE Connectivity 280520-1 is a 12-position shrouded header from the AMPMODU MODII series. It features a single row of male square pins with a 2.54mm pitch. The connector is designed for through-hole mounting with solder termination, making it suitable for board-to-board or cable applications.
This header is shrouded on three walls and includes a detent lock for secure mating. The contacts are made of brass with a tin finish (118.1µin thickness), and the insulator is black thermoplastic rated UL94 V-0. The operating temperature range is -40°C to 80°C.
Electrical ratings include 3A current and 40V voltage. The overall contact length is 14.30mm and insulation height is 12.60mm. All 12 positions are loaded. The part is identified as part of TE's AMPMODU MODII shrouded header family, widely used for reliable interconnections.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.16 | $2.16 |
| 10+ | $1.90 | $1.90 |
| 25+ | $1.88 | $1.88 |
| 100+ | $1.55 | $1.55 |
| 500+ | $1.37 | $1.37 |
| 1,000+ | $1.20 | $1.20 |
| 2,500+ | $1.13 | $1.13 |
| 5,000+ | $1.07 | $1.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 12 positions, all loaded in a single row.
The pitch is 2.54mm (0.100 inches).
The current rating is 3A.
The voltage rating is 40V.
It is a through hole mounting type with solder termination.
The operating temperature range is -40°C to 80°C.
It is a shrouded header with 3-wall shrouding.
