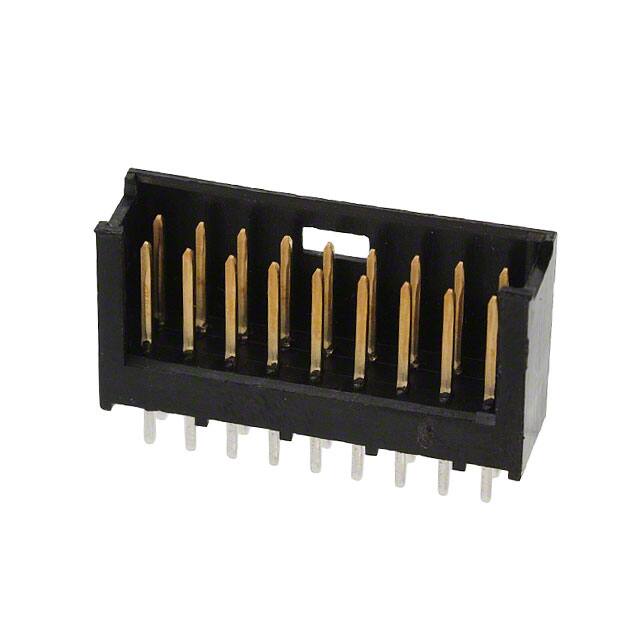

The TE Connectivity 280509-2 is a 3-wall shrouded header designed for board-to-board or cable applications. It features 18 positions arranged in 2 rows with a standard 2.54mm pitch and 2.54mm row spacing. The header uses square brass male pins with a tin contact finish (15.0µin / 0.38µm) and a contact length of 6.60mm, with an overall contact length of 14.30mm.
This through hole component is terminated via solder and secured with a detent lock fastening type. The black thermoplastic insulation has a height of 12.60mm and carries a UL94 V-0 flammability rating. The header is rated for 3A current and 40V voltage, with an operating temperature range of -40°C to 80°C.
Designed for reliable interconnection in a variety of electronic assemblies, this shrouded header provides robust mechanical protection for the male pins. The 3-wall shroud helps prevent misalignment during mating and protects contacts from damage.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.10 | $4.10 |
| 10+ | $3.49 | $3.49 |
| 250+ | $2.78 | $2.78 |
| 400+ | $2.68 | $2.68 |
| 1,200+ | $2.55 | $2.55 |
| 2,800+ | $2.39 | $2.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 280509-2 has 18 positions arranged in 2 rows.
The pitch is 2.54mm (0.100") with a row spacing of 2.54mm.
The current rating is 3A.
The voltage rating is 40V.
The mounting type is through hole with solder termination.
The operating temperature range is -40°C to 80°C.
The contacts are made of brass with a tin finish (15.0µin / 0.38µm).
