| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,500 pcs
|
4500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
32 pcs
|
32 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

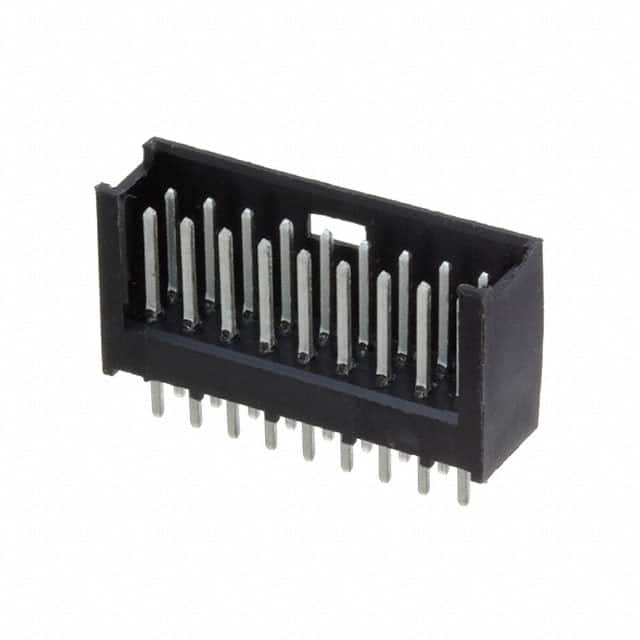

The TE Connectivity 280509-1 is a rectangular connector header designed for board-to-board or cable applications. It features 18 positions arranged in 2 rows with a 2.54mm pitch and 2.54mm row spacing. The header is shrouded with a 3-wall design and includes a detent lock for secure mating.
Electrical ratings include a current rating of 3A and a voltage rating of 40V. The operating temperature range is -40°C to 80°C. Contacts are made of brass with a tin finish (118.1µin thickness) and have a square shape. The overall contact length is 0.563" (14.30mm) with a mating contact length of 6.60mm.
The header uses through-hole mounting with solder termination. The insulation is black thermoplastic with a UL94 V-0 flammability rating. The insulation height is 12.60mm. This component is suitable for general-purpose interconnection in various electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.78 | $2.78 |
| 10+ | $2.42 | $2.42 |
| 25+ | $2.32 | $2.32 |
| 100+ | $1.92 | $1.92 |
| 400+ | $1.70 | $1.70 |
| 1,200+ | $1.27 | $1.27 |
| 2,800+ | $1.24 | $1.24 |
| 5,200+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 280509-1 has 18 positions, all loaded, arranged in 2 rows.
The pitch is 2.54mm (0.100") with a row spacing of 2.54mm.
The current rating is 3A per contact.
The voltage rating is 40V.
It uses through-hole mounting with solder termination.
The operating temperature range is -40°C to 80°C.
The contact finish is tin with a thickness of 118.1µin (3.00µm).
