| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
324,000 pcs
|
324000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Mounting Type | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Wire Gauge |

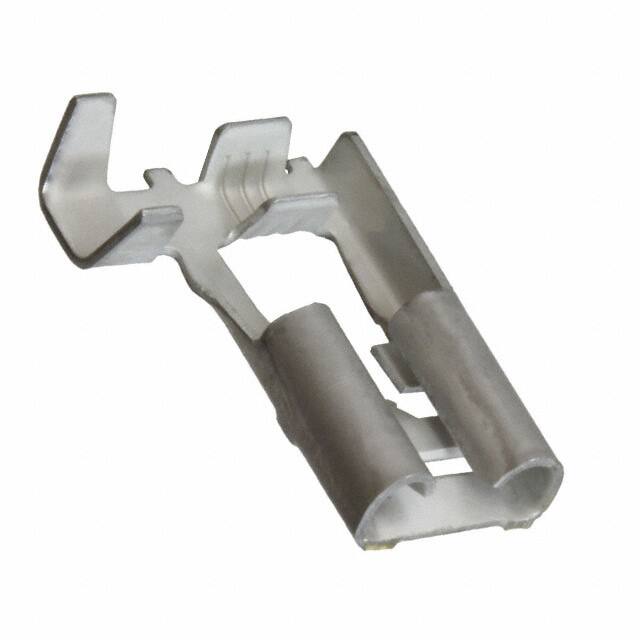

The TE Connectivity 280428-4 is a non-insulated flag quick disconnect receptacle designed for reliable wire-to-tab connections. It accepts 17-20 AWG wire and features a 0.250" (6.35mm) tab width with a 0.299" (7.60mm) tab length and 0.032" (0.81mm) tab thickness. The right-angle flag design allows for space-saving inline or right-angle mounting configurations.
The terminal is constructed from brass with a tin contact finish, providing good conductivity and corrosion resistance. Termination is via crimp, ensuring a secure mechanical and electrical connection. This part is RoHS3 compliant and has an MSL of 1 (unlimited).
Typical applications include power distribution, automotive wiring, and industrial control panels where a compact, reliable quick disconnect is required. The flag orientation is particularly useful in tight spaces where a straight terminal would not fit.
| Qty | Low | High |
|---|---|---|
| 168,000+ | $0.14 | $0.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
17-20 AWG
0.250" (6.35mm)
No, it is non-insulated.
Crimp
Brass contact with tin finish.
Free hanging (in-line), right angle.
RoHS3 compliant (unverified).
