| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,203 pcs
|
1203 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

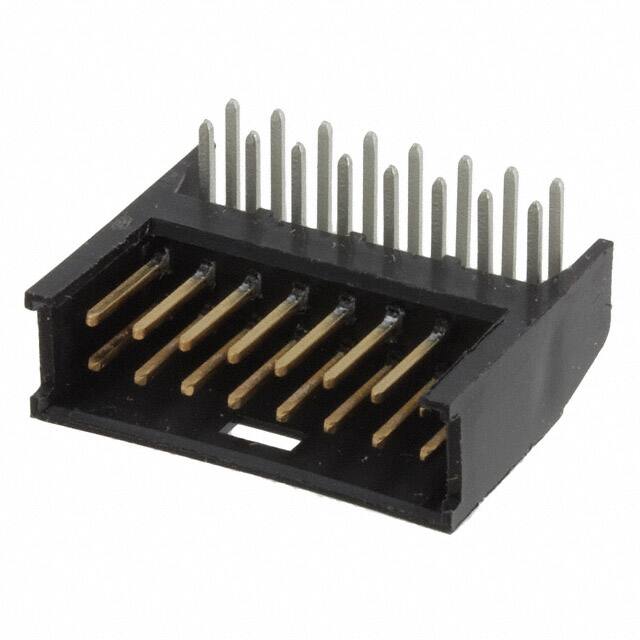

The TE Connectivity 280390-2 is a 16-position, 2-row, 2.54mm pitch shrouded header designed for board-to-board or cable connections. It features a right-angle mounting orientation with through-hole termination, making it suitable for applications where space constraints require a low-profile connector.
The header uses square brass contacts with a tin finish of 15.0µin (0.38µm), rated for 3A current at 40V. The insulator is black thermoplastic with a UL94 V-0 flammability rating, and the operating temperature range is -40°C to 80°C. The 3-wall shrouding provides protection for the male pins, and the detent lock fastening ensures secure mating with compatible receptacles.
This connector is part of the AMPMODU MODII series from TE Connectivity, known for reliable interconnections in industrial, consumer, and automotive electronics. The right-angle design allows for efficient PCB layout when the connector must be placed at the edge of the board.
The mounting type is through-hole, right-angle with solder termination. The contact length is 6.60mm (0.260") and the insulation height is 7.00mm (0.276"). All 16 positions are loaded.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.16 | $3.16 |
| 10+ | $2.77 | $2.77 |
| 25+ | $2.72 | $2.72 |
| 100+ | $2.36 | $2.36 |
| 250+ | $2.22 | $2.22 |
| 500+ | $2.09 | $2.09 |
| 1,000+ | $1.91 | $1.91 |
| 2,500+ | $1.89 | $1.89 |
| 5,000+ | $1.74 | $1.74 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 positions arranged in 2 rows.
2.54mm (0.100")
3A at 40V
Through-hole, right-angle.
-40°C to 80°C
Detent lock.
Tin with 15.0µin (0.38µm) thickness.
