| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
405 pcs
|
405 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
405 pcs
|
405 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

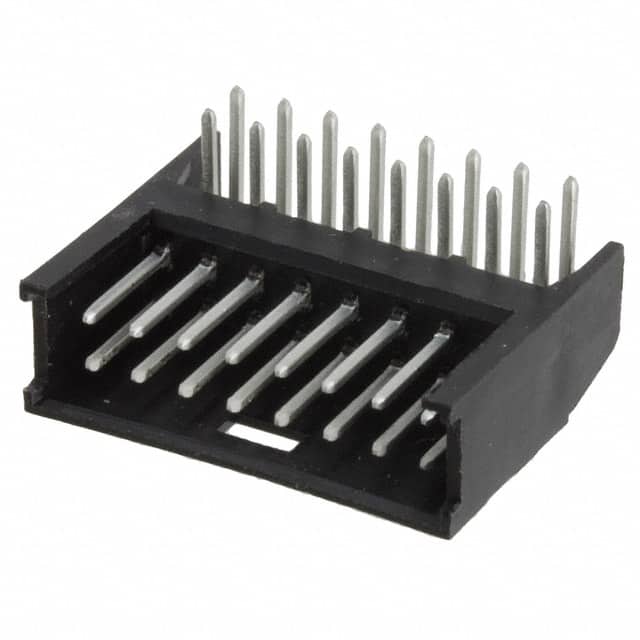

The TE Connectivity 280390-1 is a 16-position, dual-row, right-angle shrouded header from the AMPMODU II series. It features a 2.54mm pitch and 2.54mm row spacing, making it suitable for board-to-board and cable-to-board interconnections. The header is through-hole mounted with solder termination, and the black thermoplastic housing is rated UL94 V-0 for flammability. The male square pins are tin-plated (3.00µm) over nickel, providing reliable electrical contact. The connector includes a detent lock fastening type and a 3-wall shrouding for protection. Electrical ratings are 3A per contact and 40V, with an operating temperature range of -40°C to 80°C. This part is designed for applications requiring secure, high-density connections in industrial, automotive, and consumer electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.23 | $2.23 |
| 10+ | $1.90 | $1.90 |
| 100+ | $1.61 | $1.61 |
| 500+ | $1.44 | $1.44 |
| 1,000+ | $1.37 | $1.37 |
| 5,000+ | $1.22 | $1.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 280390-1 has 16 positions loaded in 2 rows.
The pitch is 2.54mm (0.100") with row spacing also 2.54mm.
The current rating is 3A per contact.
The voltage rating is 40V.
It uses through hole, right angle mounting with solder termination.
The operating temperature range is -40°C to 80°C.
The contact finish is tin with a thickness of 118.1µin (3.00µm) over nickel.
