| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,549 pcs
|
15549 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| ELV | |
| Fastening Type | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Solder Process Capability | |
| Style | |
| Termination | |
| Voltage Rating |

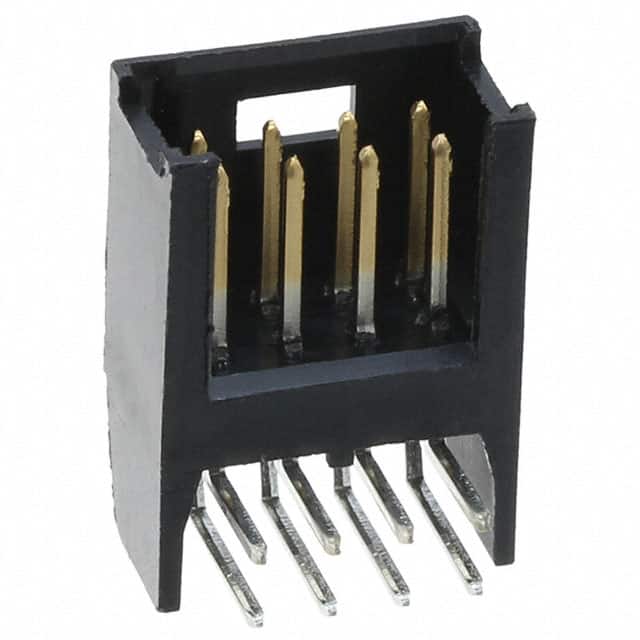

This TE Connectivity MODU II header (part number 280389-2) is an 8-position, 2-row, right angle shrouded header designed for board-to-board or cable applications. The connector features a 2.54mm (0.100") pitch and 2.54mm row spacing, with all 8 positions loaded.
Rated at 3A and 40V, the header uses brass male pins with a 15.0µin tin contact finish and a square contact shape. The black thermoplastic insulator has a 7.00mm insulation height and carries a UL94 V-0 flammability rating. The through-hole mounting with solder termination is suitable for wave soldering up to 265°C.
A detent lock fastening type provides secure mating, and the 3-wall shrouding protects the contacts. The operating temperature range covers -40°C to 80°C, making the part suitable for many industrial and consumer electronic applications.
| Qty | Low | High |
|---|---|---|
| 200+ | $1.05 | $1.05 |
| 800+ | $0.98 | $0.98 |
| 1,600+ | $0.97 | $0.97 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 8 positions arranged in 2 rows, all loaded.
The pitch is 2.54mm (0.100"). The row spacing is also 2.54mm.
The current rating is 3A.
The voltage rating is 40V.
Through hole, right angle mounting with solder termination.
The operating temperature range is -40°C to 80°C.
Yes, it is RoHS compliant per TE Connectivity declaration.
