| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
94 pcs
|
94 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

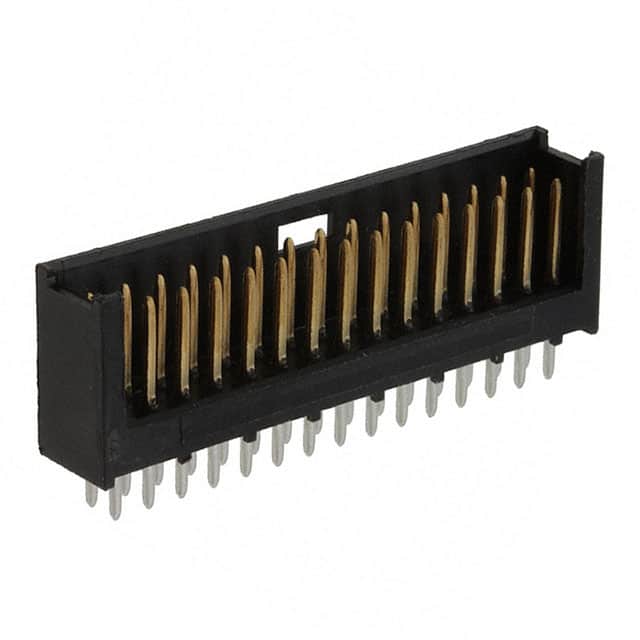

The TE Connectivity 280387-2 is a rectangular connector header designed for board-to-board or cable applications. It offers 30 positions arranged in 2 rows with a standard 2.54mm pitch and 0.100" row spacing. The connector uses through-hole mounting with solder termination for reliable mechanical attachment.
The header features a shrouded 3-wall design with a detent lock fastening system, providing secure mating and protection for the male pins. The contacts are made of brass with a tin finish (15.0µin thickness) and have a square contact shape. The black thermoplastic insulator has a flammability rating of UL94 V-0.
Electrical ratings include a nominal current rating of 3A and a voltage rating of 40V. The operating temperature range is -40°C to 80°C. The overall contact length is 0.563" (14.30mm) with a contact length of 0.260" (6.60mm) and an insulation height of 0.496" (12.60mm).
| Qty | Low | High |
|---|---|---|
| 1+ | $6.48 | $6.48 |
| 10+ | $5.71 | $5.71 |
| 250+ | $4.42 | $4.42 |
| 500+ | $4.05 | $4.05 |
| 1,000+ | $3.95 | $3.95 |
| 2,500+ | $3.71 | $3.71 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 30 positions in 2 rows, all loaded.
The nominal current rating is 3A.
The nominal voltage rating is 40V.
It uses through-hole mounting with solder termination.
The operating temperature range is -40°C to 80°C.
Yes, it has a shrouded 3-wall design with a detent lock fastening type.
