| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14,759 pcs
|
14759 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
181 pcs
|
181 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS | |
| Circuit Application | |
| Connector System | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Mating Area Plating Material | |
| Contact Mating Area Plating Thickness | |
| Contact Shape | |
| Contact Termination Area Plating Material | |
| Contact Termination Area Plating Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| ELV | |
| Fastening Type | |
| Header Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Overall Contact Length | |
| PCB Mount Orientation | |
| Packaging Type | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Standard Package Quantity | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Method | |
| Termination Post Length | |
| Voltage Rating |

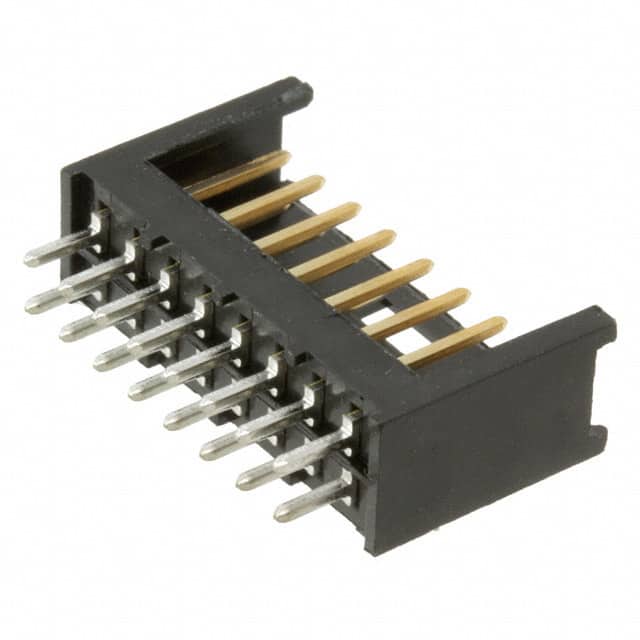

The 280385-2 is a PCB mount header from TE Connectivity's AMPMODU series. It features 16 positions arranged in 2 rows with a 2.54mm pitch and row spacing. The header is partially shrouded and mounts vertically to the PCB using through hole solder termination.
The contacts are made of brass with a gold plating on the mating area and a tin plating on the termination area. The header is rated for 3A of current and 40V of voltage, suitable for power and signal applications. The insulation material is black thermoplastic rated UL94 V-0, and the operating temperature range is -65 to 105 °C.
This header is designed for board-to-board or cable applications. It includes a detent lock fastening type for secure mating. The overall contact length is 14.30mm with a termination post length of 3.5mm. The insulation height is 12.60mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.81 | $2.81 |
| 10+ | $2.39 | $2.39 |
| 100+ | $2.03 | $2.03 |
| 500+ | $1.80 | $1.80 |
| 1,000+ | $1.72 | $1.72 |
| 2,500+ | $1.64 | $1.64 |
| 5,000+ | $1.53 | $1.53 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The header has 16 positions arranged in 2 rows.
The pitch is 2.54 mm, with a row spacing of 2.54 mm.
The current rating is 3 A.
The voltage rating is 40 V, with a dielectric withstanding voltage of 750 V.
It uses through hole mounting with solder termination.
The operating temperature range is -65 to 105 °C.
The contact mating area is plated with gold (0.381 µm), and the termination area is plated with tin (2.5 µm).
