| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
39,945 pcs
|
39945 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

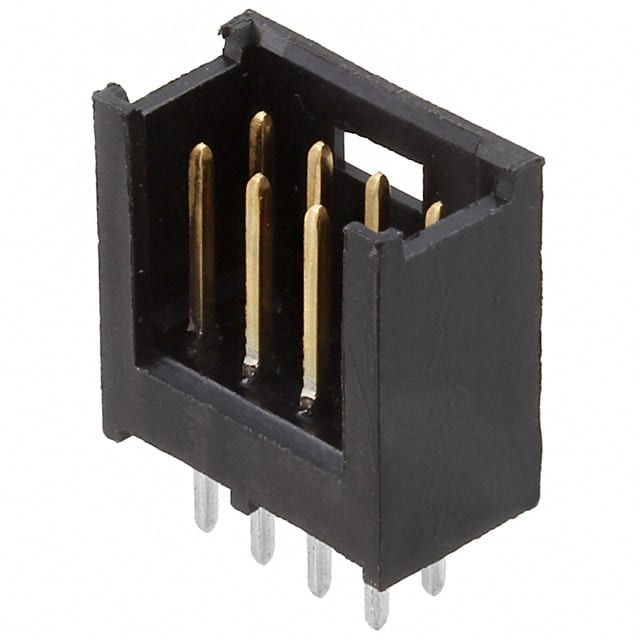

The TE Connectivity 280384-2 is an 8-position shrouded header from the AMPMODU MOD II series. It features 2 rows of male pin contacts with a 2.54mm pitch and 2.54mm row spacing. The header is shrouded on three sides with a detent lock fastening system, ensuring secure mating. The contacts are made of brass with a 15µin tin finish, rated for 3A current and 40V voltage. The through hole mounting with solder termination makes it suitable for board-to-board or cable connections. The insulation is black thermoplastic with a UL94 V-0 flammability rating, and the operating temperature range is -40°C to 80°C. Overall contact length is 14.30mm with an insulation height of 12.60mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.36 | $1.36 |
| 10+ | $1.16 | $1.16 |
| 100+ | $0.98 | $0.98 |
| 500+ | $0.87 | $0.87 |
| 1,000+ | $0.79 | $0.79 |
| 2,000+ | $0.76 | $0.76 |
| 5,000+ | $0.72 | $0.72 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions, arranged in 2 rows.
2.54mm (0.100 inch).
3A.
40V.
Through hole.
-40°C to 80°C.
Tin, with a thickness of 15.0µin (0.38µm).
