| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
27,241 pcs
|
27241 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
45 pcs
|
45 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Length - Mating | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

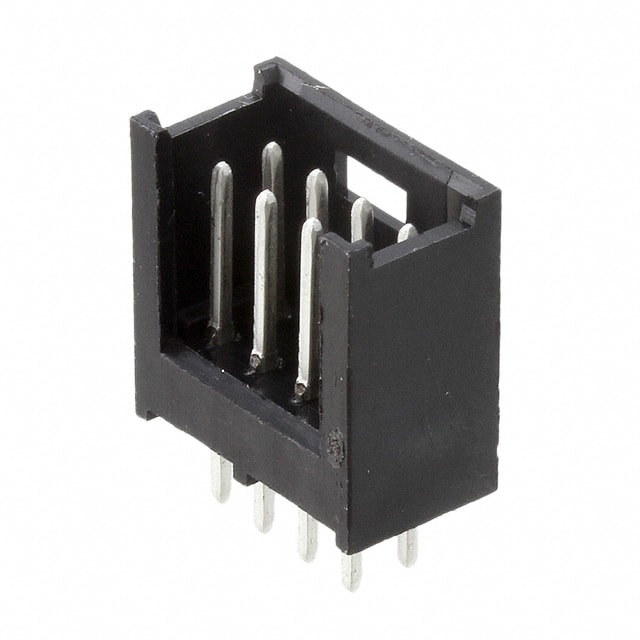

The TE Connectivity 280384-1 is a vertical, through-hole, shrouded header connector with 8 positions arranged in 2 rows. It uses a standard 2.54mm (0.100") pitch and row spacing. The connector features a 3-wall shrouded design with a detent lock fastening system for secure mating.
The insulation is made from black UL94 V-0 rated thermoplastic. Contacts are male pins made of brass with a tin finish (118.1µin thickness). The mating contact length is 6.60mm with an overall contact length of 14.30mm and an insulation height of 12.60mm.
This connector is rated for 3A current and 40V voltage. Its operating temperature range is -40°C to 80°C. The connector is suitable for board-to-board or cable-to-board applications requiring a reliable shrouded interface.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.11 | $1.11 |
| 10+ | $0.94 | $0.94 |
| 100+ | $0.80 | $0.80 |
| 250+ | $0.79 | $0.79 |
| 500+ | $0.70 | $0.70 |
| 1,000+ | $0.67 | $0.67 |
| 2,000+ | $0.63 | $0.63 |
| 5,000+ | $0.60 | $0.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 280384-1 has 8 positions in 2 rows.
The pitch is 2.54mm (0.100") with the same row spacing.
The current rating is 3A.
The voltage rating is 40V.
It uses through-hole mounting.
Yes, the header is shrouded with a 3-wall design.
The operating temperature range is -40°C to 80°C.
