| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

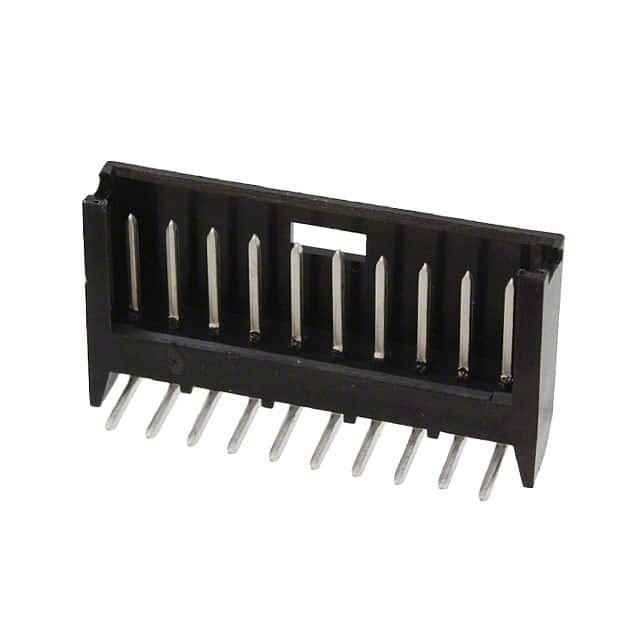

This part is a 10-position shrouded header from TE Connectivity's AMPMODU MODII series. It features male square pins arranged in a single row with a 2.54mm pitch. The connector is designed for board-to-board or cable-to-board applications.
The housing is black thermoplastic with UL94 V-0 flammability rating. The contacts are made of brass with a tin finish (118.1µin). The connector is shrouded with a 3-wall design and includes a detent lock fastening system for secure mating.
Rated for 3A current and 40V voltage, with an operating temperature range of -40°C to 80°C. The right angle orientation allows for space-saving designs. Solder termination is used for through hole mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.89 | $1.89 |
| 10+ | $1.62 | $1.62 |
| 25+ | $1.58 | $1.58 |
| 100+ | $1.37 | $1.37 |
| 250+ | $1.33 | $1.33 |
| 500+ | $1.22 | $1.22 |
| 1,000+ | $1.19 | $1.19 |
| 5,000+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions in a single row.
2.54 mm (0.100 inches).
3 Amps.
40 Volts.
Through hole, right angle.
Detent lock.
-40°C to 80°C.
