| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,500 pcs
|
6500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Storage Temperature | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

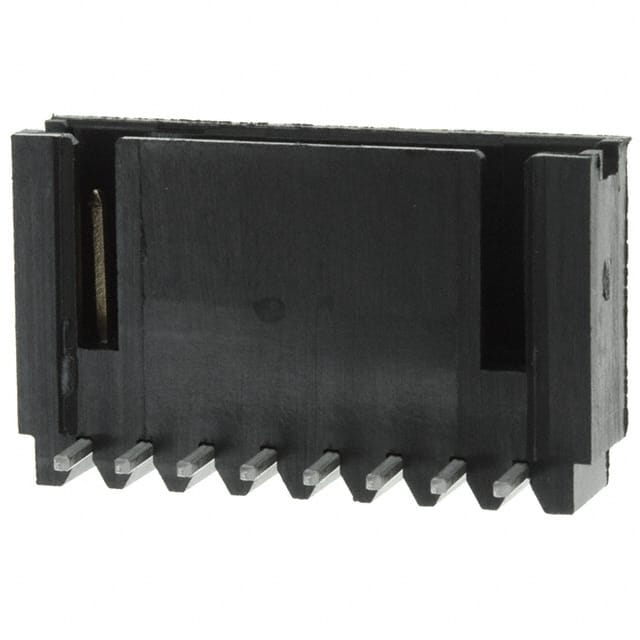

The TE Connectivity 280380-2 is a shrouded male pin header from the AMPMODU II series. It features 8 positions arranged in a single row with a 2.54mm pitch. The connector is mounted through a right angle orientation and terminated via solder. It is designed for board-to-board or cable-to-board applications. The housing is made of black thermoplastic rated UL94 V-0. Contacts are brass with tin plating in the solder area and 0.38µm minimum gold in the contact area. The fastening type is a detent lock for secure mating. Current rating is 3A and voltage rating is 40V. Operating temperature range is -40°C to 80°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.54 | $2.54 |
| 10+ | $2.16 | $2.16 |
| 100+ | $1.84 | $1.84 |
| 500+ | $1.63 | $1.63 |
| 1,000+ | $1.47 | $1.47 |
| 2,500+ | $1.38 | $1.38 |
| 5,000+ | $1.33 | $1.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TE Connectivity 280380-2 header has 8 positions.
The pitch is 2.54mm (0.100 inch).
The current rating is 3A.
The voltage rating is 40V.
It uses through hole, right angle mounting with solder termination.
