| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,394 pcs
|
2394 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

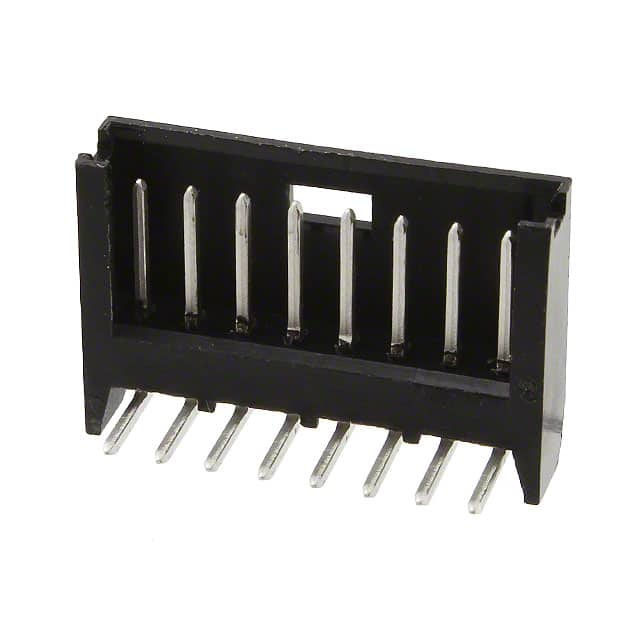

The TE Connectivity 280380-1 is an 8-position, single-row shrouded header from the AMPMODU MODII series. It features a 2.54mm (0.100") pitch with male square pins made of brass with a 3µm tin finish. The connector is shrouded with a 3-wall design and includes a detent lock fastening for secure mating. The right-angle through-hole termination allows for space-saving board-to-board or cable-to-board connections. The thermoplastic insulator is black and rated UL94 V-0 for flammability. Electrical ratings include 3A current and 40V voltage. The operating temperature range is -40°C to 80°C. The contact length is 6.60mm and insulation height is 5.00mm. All 8 positions are loaded.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.81 | $1.81 |
| 10+ | $1.57 | $1.57 |
| 25+ | $1.45 | $1.45 |
| 100+ | $1.35 | $1.35 |
| 500+ | $1.29 | $1.29 |
| 1,000+ | $1.19 | $1.19 |
| 2,500+ | $0.97 | $0.97 |
| 5,000+ | $0.93 | $0.93 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions.
2.54mm (0.100").
3A.
40V.
Through Hole, Right Angle.
-40°C to 80°C.
Thermoplastic with UL94 V-0 flammability rating.
