| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,398 pcs
|
2398 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Flammability Rating | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

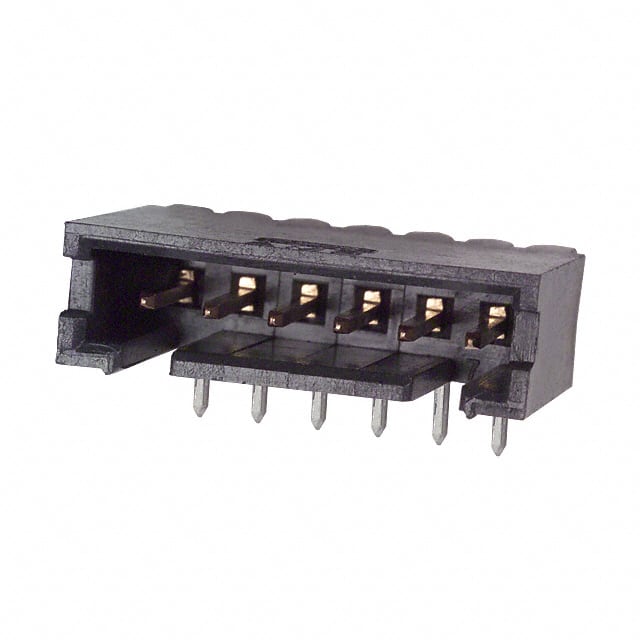

The TE Connectivity 280379-2 is a 6-position, single-row, shrouded header designed for board-to-board or cable connections. It features a 3-wall shrouded design that provides polarization and protection for the male pins. The right-angle orientation allows for low-profile connections perpendicular to the PCB.
Key specifications include a 2.54mm pitch, 3A current rating, and 40V voltage rating. The contacts are made of brass with a tin finish of 15.0µin thickness. The insulation is black thermoplastic with UL94 V-0 flammability rating. Operating temperature range is -40°C to 80°C.
The header uses a detent lock fastening mechanism for secure mating with compatible receptacles. It is part of the AMPMODU MOD II product family, known for reliable interconnections in industrial and commercial applications.
The through-hole, right-angle mounting enables robust soldering to the PCB. The square contact shape and 6.60mm contact length provide reliable electrical connections. This component is suitable for various electronic assemblies requiring a compact, durable header.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.70 | $1.70 |
| 10+ | $1.45 | $1.45 |
| 100+ | $1.23 | $1.23 |
| 500+ | $1.10 | $1.10 |
| 1,000+ | $1.04 | $1.04 |
| 5,000+ | $0.93 | $0.93 |
| 10,000+ | $0.89 | $0.89 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions.
2.54mm (0.100").
3A.
40V.
Through hole, right angle.
-40°C to 80°C.
Tin, 15.0µin (0.38µm) thickness.
