| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16,336 pcs
|
16336 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,800 pcs
|
1800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
66 pcs
|
66 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

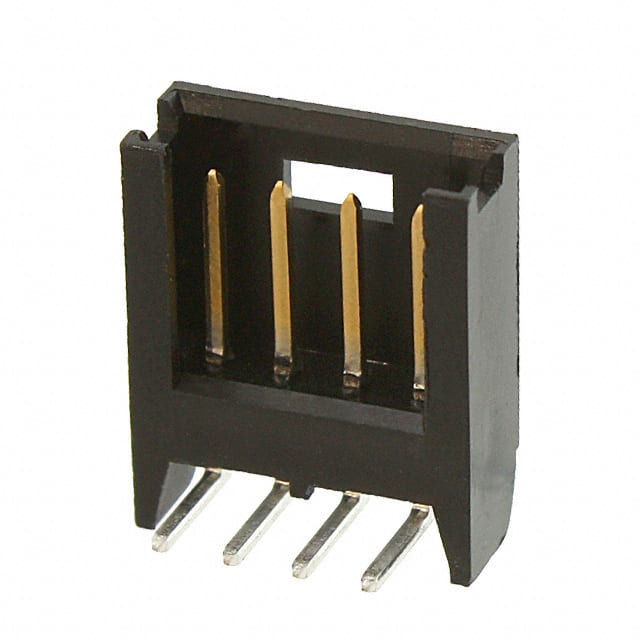

The TE Connectivity 280378-2 is a 4-position, single-row rectangular header designed for board-to-board or cable connections. It features male pins with a 2.54mm (0.100") pitch, right-angle through-hole mounting, and solder termination. The connector is shrouded with a 3-wall design and includes a detent lock fastening mechanism for secure mating.
The header is constructed with brass contacts plated with tin (15.0µin thickness) and a thermoplastic black insulation body. It is rated for 3A current and 40V voltage, operating over -40°C to 80°C. The insulation material has a UL94 V-0 flammability rating. The contact length is 6.60mm, insulation height 5.00mm.
This component is suitable for various applications requiring a reliable, polarized connection with moderate current handling. The right-angle configuration allows for space-saving designs on PCBs. The shrouding and lock provide additional retention and protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.13 | $1.13 |
| 10+ | $0.96 | $0.96 |
| 25+ | $0.94 | $0.94 |
| 100+ | $0.81 | $0.81 |
| 500+ | $0.73 | $0.73 |
| 1,000+ | $0.69 | $0.69 |
| 2,000+ | $0.65 | $0.65 |
| 5,000+ | $0.62 | $0.62 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
2.54mm (0.100").
3A.
40V.
Through hole, right angle.
Male pin.
-40°C to 80°C.
