| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,210 pcs
|
8210 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
76 pcs
|
76 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

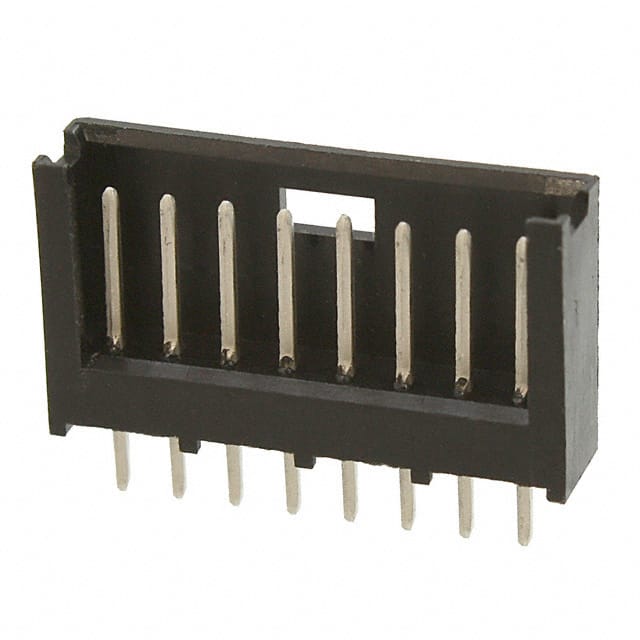

The TE Connectivity 280373-2 is a shrouded header connector from the AMPMODU Mod II series. It features 8 positions in a single row with a 2.54mm (0.100") pitch, designed for through hole mounting with solder termination. The header is shrouded with a 3-wall design and includes a detent lock fastening system for secure mating.
Electrical ratings include a current rating of 3A and a voltage rating of 40V. The operating temperature range is -40°C to 80°C. The insulation is made of black thermoplastic with a UL94 V-0 flammability rating. Contacts are made of brass with a tin finish (15.0µin thickness).
This connector is suitable for board-to-board or cable-to-board applications. The overall contact length is 0.563" (14.30mm) with a mating contact length of 0.260" (6.60mm). Packaging is cut tape (CT).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.20 | $2.20 |
| 10+ | $1.87 | $1.87 |
| 100+ | $1.59 | $1.59 |
| 500+ | $1.56 | $1.56 |
| 1,000+ | $1.54 | $1.54 |
| 2,500+ | $1.35 | $1.35 |
| 5,000+ | $1.33 | $1.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 8 positions in a single row.
The current rating is 3A.
The voltage rating is 40V.
Through hole mounting with solder termination.
-40°C to 80°C.
Tin finish with 15.0µin (0.38µm) thickness.
