| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
85,349 pcs
|
85349 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10,483 pcs
|
10483 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10,483 pcs
|
10483 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
745 pcs
|
745 pcs | On Request | 1 | On Request | On Request | 2005 | On Request | On Request | |
|
99 pcs
|
99 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

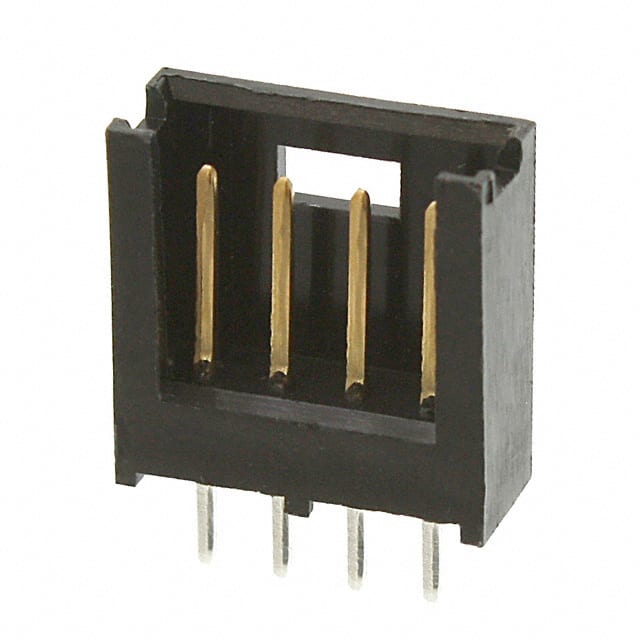

The TE Connectivity 280371-2 is a 4-position single row shrouded header from the AMPMODU II series. It features a 2.54mm pitch and through hole mounting with solder termination. The connector is designed for board-to-board or cable applications and includes a 3-wall shrouding with detent lock fastening for secure mating.
The header is rated for 3A current and 40V voltage, with an operating temperature range of -40°C to 80°C. The insulation is black thermoplastic with UL94 V-0 flammability rating. Contacts are made of brass with tin plating (3-5µm tin over nickel). The mating contact length is 6.60mm and overall contact length is 14.30mm.
This component is suitable for a variety of interconnection needs where a reliable, polarized connection is required. The shrouded design protects the pins and provides keying to prevent mis-mating.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.13 | $1.13 |
| 10+ | $0.96 | $0.96 |
| 100+ | $0.82 | $0.82 |
| 500+ | $0.73 | $0.73 |
| 1,000+ | $0.70 | $0.70 |
| 5,000+ | $0.62 | $0.62 |
| 10,000+ | $0.59 | $0.59 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 280371-2 has 4 positions in a single row.
The pitch is 2.54mm (0.100 inches).
The current rating is 3A.
The voltage rating is 40V.
It uses through hole mounting with solder termination.
The operating temperature range is -40°C to 80°C.
RoHS compliance is indicated but unverified.
