| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
124,399 pcs
|
124399 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,250 pcs
|
1250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,091 pcs
|
1091 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

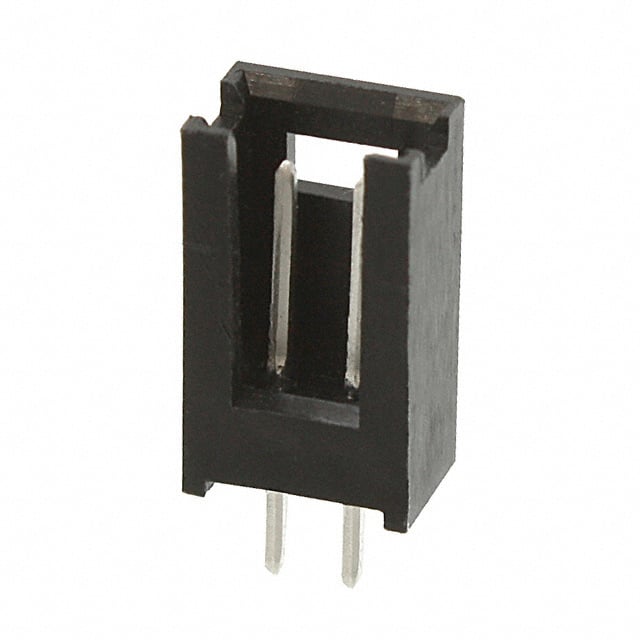

The TE Connectivity 280370-1 is a 2-position, single-row shrouded header from the AMPMODU MODII series. It features a 2.54mm pitch and through-hole solder termination, making it suitable for board-to-board or cable-to-board connections. The header is shrouded with a 3-wall design and includes a detent lock for secure mating.
Electrical ratings include 3A current and 40V voltage. The contacts are made of brass with a 3µm tin finish, and the insulation is black thermoplastic rated UL94 V-0. Operating temperature range is -40°C to 80°C. The overall contact length is 14.30mm with an insulation height of 12.60mm.
This connector is designed for general-purpose interconnection in industrial, consumer, and automotive applications where reliable low-power signal connections are required. The through-hole mounting provides robust mechanical attachment to PCBs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.49 | $0.49 |
| 10+ | $0.41 | $0.41 |
| 25+ | $0.41 | $0.41 |
| 100+ | $0.35 | $0.35 |
| 250+ | $0.31 | $0.31 |
| 1,000+ | $0.28 | $0.28 |
| 3,000+ | $0.27 | $0.27 |
| 6,000+ | $0.25 | $0.25 |
| 10,500+ | $0.25 | $0.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 280370-1 has 2 positions in a single row.
The pitch is 2.54mm (0.100 inches).
The current rating is 3A.
The voltage rating is 40V.
It uses through-hole mounting with solder termination.
The operating temperature range is -40°C to 80°C.
The contacts have a tin finish with a thickness of 3.00µm.
