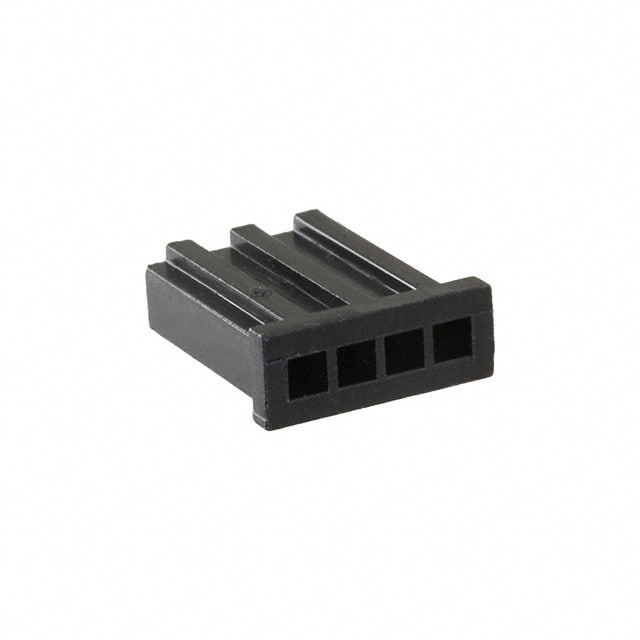

280359 TE Connectivity 280359 is a single row, 4-position receptacle housing from the AMPMODU II series. It features 2.54mm pitch, crimp snap-in contacts, and a black LCP housing rated UL 94V-0.
Mfr Part #:

280359

Available from 3 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 280359 is a single row, 4-position receptacle housing from the AMPMODU II series. It features 2.54mm pitch, crimp snap-in contacts, and a black LCP housing rated UL 94V-0.
✓ Total Stock: 192,826 pcs
$ Price Range: $0.16 - $0.30

280359 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
166,755 pcs
On Request
166755 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
25,121 pcs
On Request
25121 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
950 pcs
On Request
950 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

280359 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Type
Contact Termination
Contact Type
Housing Material
Mounting Type
Number of Positions
Number of Rows
Pitch
SVHC Present
Tape & Reel
View Similar Products (0)

280359 Description

Short technical summary and product information.

The TE Connectivity 280359 is an AMPMODU II single row receptacle housing designed for 2.54mm pitch crimp snap-in contacts. It accommodates 4 positions in a single row configuration.



This housing is intended for free hanging (in-line) mounting and uses female socket contacts with a crimp termination style. The housing material is liquid crystal polymer (LCP) with a black finish, providing a UL 94V-0 flammability rating for improved fire resistance.



This part is part of the AMPMODU II series and is commonly used in wire-to-wire or wire-to-board interconnects where reliable, high-temperature performance is required.

280359 Quick Information

Product Type: Rectangular Connector Housing
Series: 280358
Canonical Name: AMPMODU II Receptacle Housing, Single Row, 4 Positions, 2.54mm Pitch, Crimp Termination, Free Hanging
Subcategory: Rectangular Connector Housings

280359 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

280359 Estimated Pricing

Qty Low High
1+ $0.30 $0.30
10+ $0.26 $0.26
25+ $0.23 $0.23
100+ $0.22 $0.22
250+ $0.20 $0.20
1,000+ $0.19 $0.19
3,000+ $0.17 $0.17
5,000+ $0.17 $0.17
10,000+ $0.16 $0.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

280359 Features

  • Single row 4-position receptacle housing.
  • 2.54mm (0.100 inch) contact pitch.
  • Crimp termination for female socket contacts.
  • Free hanging in-line mounting style.
  • LCP housing with UL 94V-0 flammability rating.

280359 Applications

  • Used in wire-to-wire connector systems.
  • Suitable for high-temperature electronic assemblies.
  • Common in automotive and industrial harnesses.
  • Ideal for discrete wire crimp applications.

280359 FAQs

4 frequently asked questions generated from this part’s specifications.
How many positions does the 280359 have?

The 280359 has 4 positions in a single row.

What is the pitch of the 280359?

The pitch is 2.54mm (0.100 inch).

What is the mounting type for this housing?

It is a free hanging (in-line) mounting type.

What is the housing material and flammability rating?

The housing is made of LCP and has a UL 94V-0 flammability rating.
