| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Country of Origin | |
| Depth | |
| For Use With | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Rated Current | |
| SVHC Present | |
| Storage Temperature | |
| Width |

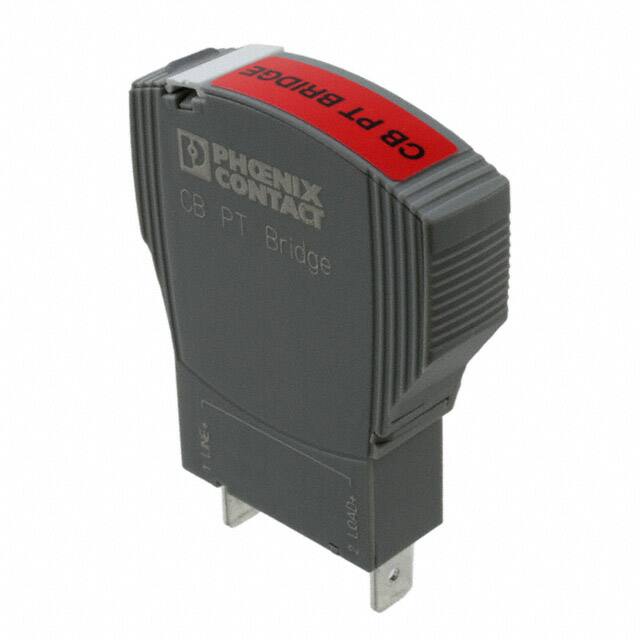

The Phoenix Contact 2801014 is a bridge terminal block plug in designed for use in circuit protection applications. This single-position accessory mounts on a base element and provides a reliable connection point.
Electrical specifications include a rated voltage of 277 V AC and 80 V DC, with a maximum rated current of 16 A. The component measures 12.3 mm in width and 45 mm in depth.
The actuation area offers IP30 degree of protection. It is designed for an operating temperature range of -30 °C to 60 °C and a storage temperature range of -40 °C to 80 °C. The component is manufactured in Germany.
-30 °C to 60 °C.
277 V AC and 80 V DC.
16 A maximum.
IP30 on the actuation area.
