Mfr Part #:

2800929

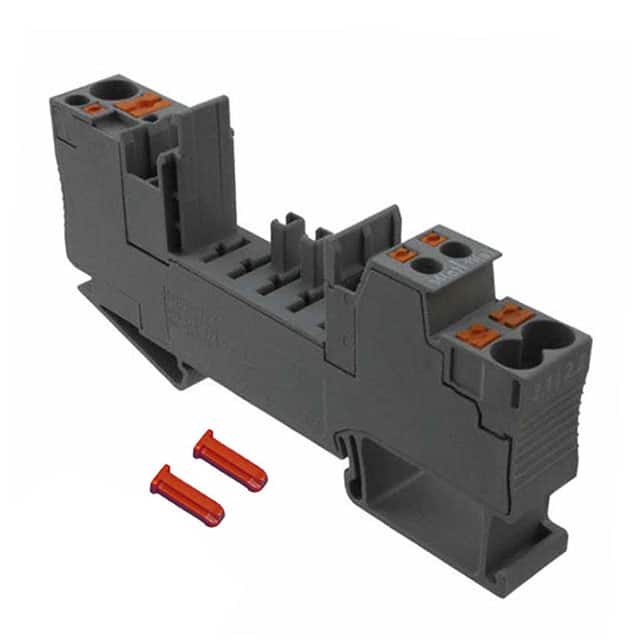

The Phoenix Contact 2800929 is a 1-position base element designed to accommodate thermomagnetic and electronic device circuit breakers. It features DIN rail mounting for easy installation.

Stock on Request

2800929 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Accessories
Manufacturer Name	Phoenix Contact
Accessory Type	Base
Housing Material	PA 6.6
Mounting Type	DIN Rail
Rated Current	16 A
Rated Voltage	300 V
Weight	29.5 g

View Similar Products (0)

2800929 Description

Short technical summary and product information.

The Phoenix Contact CB 1/6-2/4 PT-BE (Order No. 2800929) is a push-in base element designed for use with thermomagnetic (CB TM...) and electronic (CB E...) device circuit breakers. This 1-position base element facilitates the accommodation of 1 or 2-position thermomagnetic breakers and 1-position electronic breakers.

It is designed for installation on a DIN rail (NS 35 acc. to EN 60715), making it suitable for modular control panel construction. The base element has a rated voltage of 300V and a rated current of 16A. Its housing is made of PA 6.6 and meets UL 94 V0 flammability class standards. The operating temperature range is -40°C to +120°C.

Connection capacity for solid wires ranges from 0.5 mm² to 6 mm². The base element has a degree of protection of IP30. Environmental testing includes vibrations (Category 1, Class B), shock (5g/30 ms), and corrosion (1.0 l).

2800929 Quick Information

Product Type: Base Element

Canonical Name: Phoenix Contact CB 1/6-2/4 PT-BE Base Element

Subcategory: Circuit Breaker Accessories

2800929 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

2800929 Features

Accommodates thermomagnetic and electronic circuit breakers.
Designed for DIN rail NS 35 mounting.
Rated for 300V nominal voltage.
Rated for 16A maximum current.
Wide operating temperature range of -40°C to +120°C.

2800929 Applications

Ideal for circuit breaker base mounting in control panels
Suitable for industrial automation environments
Used in railway applications per EN 50155
Handles up to 16A in distribution systems
Operates in harsh temperatures from -40 to 120°C

2800929 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the rated voltage of the 2800929 base element?

300V

What is the operating temperature range?

-40°C to +120°C

What is the rated current?

16A

What wire sizes can be connected?

0.5mm² to 6mm² (solid wire 1mm² to 6mm² for direct plug-in)

What is the mounting method?

Installation on DIN rail NS 35 according to EN 60715

What is the housing material and flammability rating?

PA 6.6 with V0 according to UL 94

What is the degree of protection?

IP30 (IP20 in operating range) per IEC 60529
