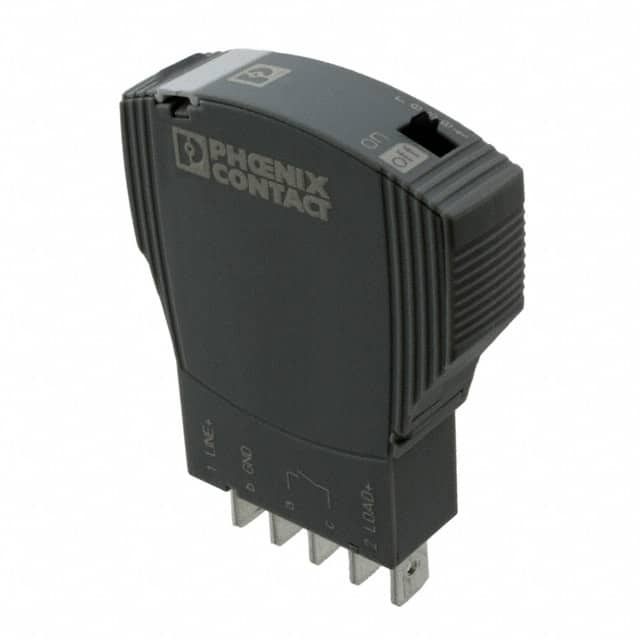

The Phoenix Contact 2800912 is a single-position electronic device circuit breaker designed for reliable circuit protection. It operates at 24V DC with a nominal current rating of 6A and features active current limitation, making it suitable for various applications. The device includes a status output and a reset input, allowing for sophisticated remote signaling and monitoring capabilities.
With a compact design and modular expansion potential through its plug-in housing concept, this circuit breaker integrates seamlessly into systems. Installation instructions note that when mounted in rows without convection cooling, the nominal device current should be limited to 80% due to thermal effects during continuous operation. Parallel connection of multiple circuit breakers is not permitted.
The circuit breaker has a height of 45 mm, a width of 12.3 mm, and a depth of 52 mm. It operates within an ambient temperature range of 0 °C to 50 °C (without condensation) and has a degree of protection of IP30 at the actuation area. Standards compliance includes UL 2367, UL 508, CSA 22.2 No. 14, and EMV standards EN 61000-6-3 and EN 61000-6-2.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the Phoenix Contact 2800912 circuit breaker is 24 V DC.
The nominal current rating of the 2800912 circuit breaker is 6 A.
The ambient operating temperature range for this circuit breaker is 0 °C to 50 °C without condensation.
The degree of protection for the actuation area of the 2800912 circuit breaker is IP30.
The Phoenix Contact 2800912 circuit breaker complies with UL 2367, UL 508, CSA 22.2 No. 14, EN 61000-6-3, and EN 61000-6-2.
