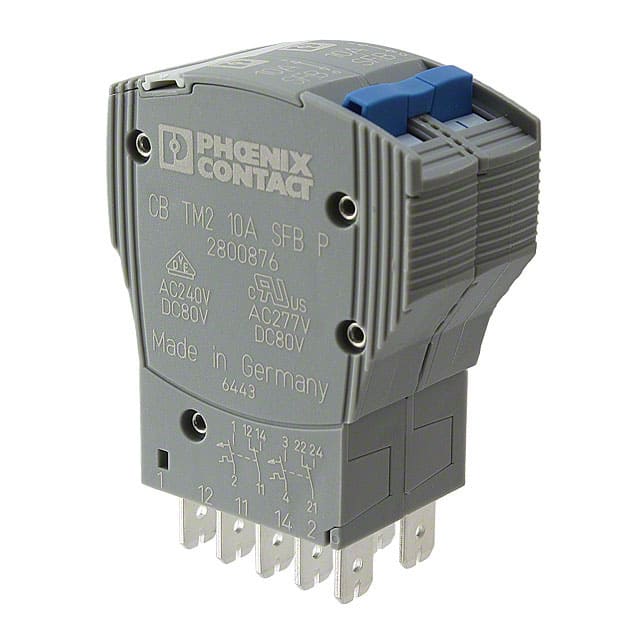

The Phoenix Contact 2800876 is a thermomagnetic device circuit breaker designed for reliable circuit protection. It features a 2-pole configuration and a tripping characteristic of SFB, with 2 PDT contacts. This breaker is rated for a nominal current of 10A and supports various voltage ratings, including 240V AC (IEC 60934), 277V AC (UL 1077, UL 508), and 80V DC (IEC 60934, UL 1077, UL 508).
With a compact design measuring 45 mm in height, 24.6 mm in width, and 52 mm in depth, it is suitable for mounting on a base element. The operating ambient temperature range is -30 °C to 60 °C. The device offers a rated short-circuit switching capacity of 400A at 240V AC and 600A at 80V DC. It also includes a trip-free mechanism for enhanced safety.
Additional specifications include a rated surge voltage of 2.5 kV and an insulation resistance greater than 100 MΩ. The degree of protection for the actuation area is IP30. The breaker is constructed with insulating material group II and has a pollution degree of 2. It is designed for a maximum of 6000 cycles at 240V AC/1x In and 3000 cycles at 80V DC/1x In.
The rated current is 10A per IEC 60934 and UL 1077.
It is rated 240VAC (IEC 60934), 277VAC (UL 1077), and 80VDC (IEC 60934 and UL 1077).
The operating temperature range is -30°C to 60°C.
It uses S-type actuation with a trip-free mechanism.
400A at 240VAC and 600A at 80VDC.
Height 45mm, width 24.6mm, depth 52mm.
