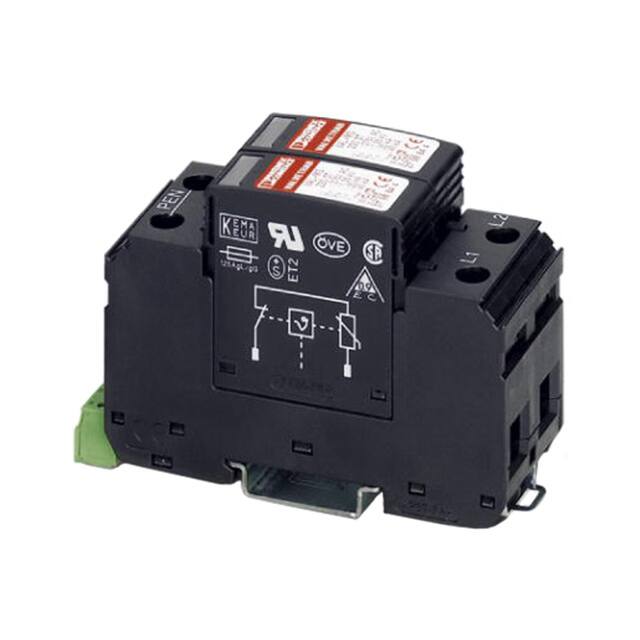

2800102 Phoenix Contact 2800102 is a Type 2 surge protection device with 2 poles, rated 240/415V AC, 20kA nominal discharge current, and DIN rail mounting.
Mfr Part #:

2800102

Available from 2 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 2800102 is a Type 2 surge protection device with 2 poles, rated 240/415V AC, 20kA nominal discharge current, and DIN rail mounting.
✓ Total Stock: 22 pcs

2800102 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
11 pcs
On Request
11 pcs On Request 1 On Request On Request On Request On Request On Request
RAD ✓
Non-Authorised Inventory information
11 pcs
On Request
11 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2800102 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Color
Connection Method
Current
Depth
Features
Form
Height
Housing Material
Industrial Grade
Mounting Type
Number of Poles
Operating Temperature
Response Time
Storage Temperature
Tape & Reel
Termination Style
Type
Voltage
Width
View Similar Products (0)

2800102 Description

Short technical summary and product information.

The Phoenix Contact VAL-MS 230/2+0-FM (2800102) is a Type 2 surge protection device (SPD) designed for TN-C power systems. It features two poles in a 2+0 circuit configuration with a nominal voltage of 240/415 V AC. The device provides a nominal discharge current of 20 kA (8/20 µs) and a maximum discharge current of 40 kA (8/20 µs), with a voltage protection level of ≤1.35 kV at rated current. The SPD includes thermal-dynamic monitoring, a visual fault indicator, and a remote signaling contact for status indication. It is mounted on a 35 mm DIN rail and housed in a black PA 6.6/PBT enclosure with IP20 protection. Operating temperature range is -40°C to 80°C. The unit features plug-in/screw connection via COMBICON terminals and has UL 94 V-0 flammability rating.

2800102 Quick Information

Product Type: Surge Protection Device (SPD)
Series: VAL-MS 230/2+0-FM
Canonical Name: VAL-MS 230/2+0-FM Type 2 Surge Arrester
Subcategory: Type 2 SPD

2800102 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

2800102 Features

  • Type 2 surge protection for TN-C systems.
  • Rated discharge current 20 kA (8/20 µs).
  • Maximum discharge current 40 kA (8/20 µs).
  • DIN rail mountable with 2-pole configuration.
  • Includes remote signaling and visual status indication.

2800102 Applications

  • Protects low-voltage distribution panels from surges.
  • Used in industrial control and automation systems.
  • Ideal for TN-C power supply networks.
  • Suitable for building infrastructure surge protection.

2800102 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum voltage protection level of this SPD?

The voltage protection level is ≤1.35 kV at nominal discharge current (20 kA).

What is the nominal discharge current rating?

The nominal discharge current (In) is 20 kA under 8/20 µs waveform.

What mounting type does this device use?

It mounts on a 35 mm DIN rail with a width of 35.6 mm (2 Div.).

What is the operating temperature range?

The device operates from -40°C to 80°C.

Does it have a remote signaling feature?

Yes, it includes a PDT remote indicator contact rated 5 V AC to 250 V AC, 30 V DC.

What is the response time of this surge arrester?

The response time is ≤25 ns.
