| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
112,000 pcs
|
112000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Typical @ 2.5 mm² wire size) | |
| Gender | |
| Insulation | |
| Length | |
| Mounting Type | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Wire Gauge |

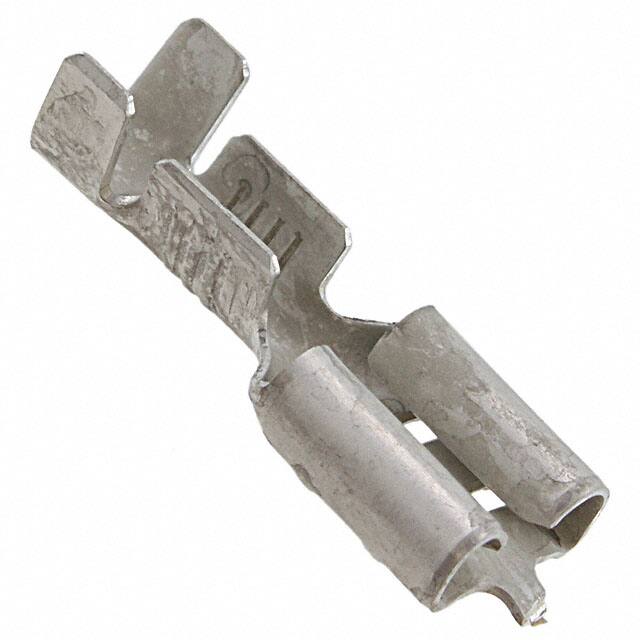

The TE Connectivity 280001-9 is a standard female quick connect receptacle from the FASTON family. It features a 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness, with a total length of 19.00mm. The contact is made of brass with a tin finish, ensuring reliable conductivity and corrosion resistance.
This non-insulated receptacle uses crimp termination and accepts wire gauges from 13.5 to 17 AWG. It is rated for a typical current of 20 A (based on 2.5 mm² wire size). The mounting type is free hanging (in-line), making it suitable for quick disconnect applications in various electrical systems.
Designed for speed and reliability, the FASTON product line offers low per-line cost and uniform performance. The 280001-9 is commonly used in automotive, appliance, and industrial control applications where secure and repeatable connections are required.
| Qty | Low | High |
|---|---|---|
| 7,000+ | $0.07 | $0.07 |
| 14,000+ | $0.07 | $0.07 |
| 28,000+ | $0.07 | $0.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 A typical (based on 2.5 mm² wire size).
Free Hanging (In-Line).
13.5-17 AWG.
0.250" (6.35mm).
Crimp.
No, it is non-insulated.
Brass with tin finish.
