| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
120 pcs
|
120 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Cross-section | |
| Current | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Conductors | |
| Number of Levels | |
| Number of Positions | |
| Terminal | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

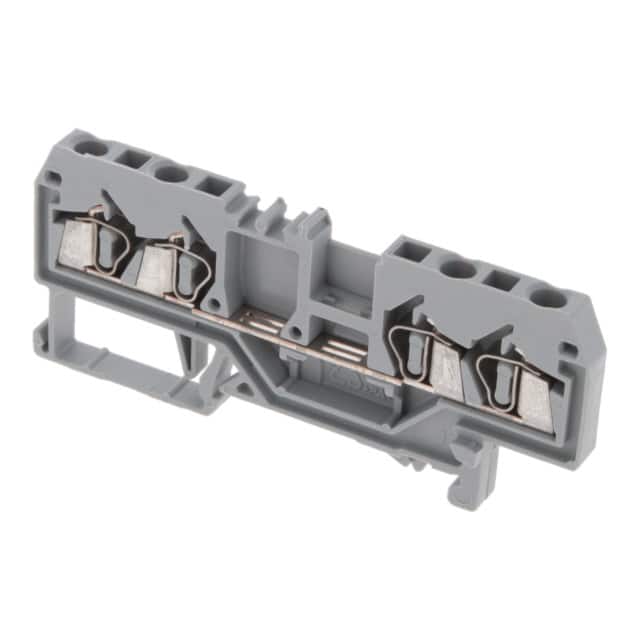

The Wago 280-833 is a 4-conductor feed-through terminal block designed for DIN rail mounting. It features push-in spring (CAGE CLAMP®) termination, accommodating wire sizes from 0.08 to 2.5 mm². Rated for 20A and 800V, this block is suitable for a variety of industrial control and electrical distribution applications. The gray housing provides clear identification, and the center marking allows for easy labeling. With 4 positions and 1 level, it offers compact wiring for multiple conductors. The terminal pitch is 5.0 mm.
This terminal block is built for reliable connections in demanding environments. The push-in spring technology ensures fast, vibration-proof wiring without tools. It mounts on standard DIN 35 x 15 and 35 x 7.5 rails. The 2.5 mm² cross section supports solid and stranded conductors.
Typical applications include control cabinets, power distribution panels, and automation systems. The 800V voltage rating makes it suitable for industrial power circuits. The gray color and center marking aid in circuit organization and maintenance.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.71 | $7.71 |
| 10+ | $5.47 | $5.47 |
| 25+ | $4.82 | $4.82 |
| 50+ | $4.41 | $4.41 |
| 100+ | $4.09 | $4.09 |
| 250+ | $3.75 | $3.75 |
| 500+ | $3.56 | $3.56 |
| 1,000+ | $3.41 | $3.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 4 positions (4 conductors).
The terminal pitch is 5.0 mm.
Rated current is 20 A and rated voltage is 800 V.
It uses push-in spring (CAGE CLAMP®) termination.
It mounts on DIN rail (35 x 15 and 35 x 7.5 mm).
It accepts wire sizes from 0.08 to 2.5 mm².
It is gray.
