| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
48 pcs
|
48 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Resistance | |
| Terminal | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

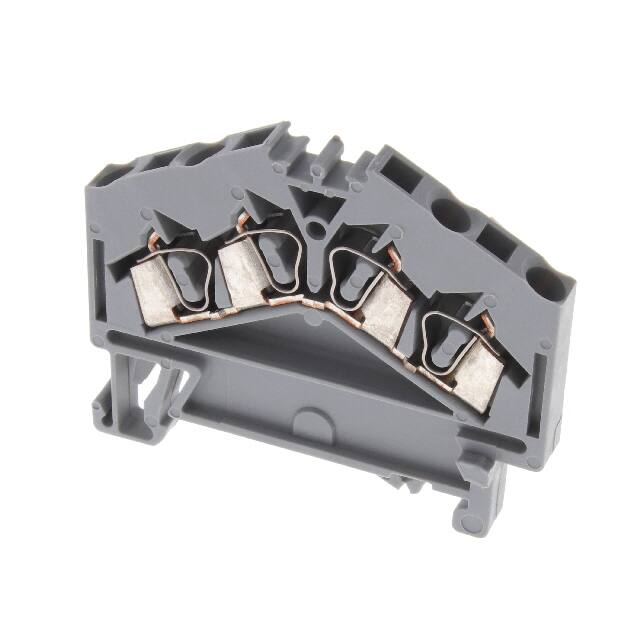

The Wago 280-646 is a 4-conductor through terminal block from the 280 Series, designed for DIN-rail mounting (35 x 15 and 35 x 7.5 mm). It features the CAGE CLAMP® spring clamp connection technology for fast and reliable wiring of solid and stranded conductors from 0.08 to 2.5 mm².
This feed-through terminal block is rated for 800V (IEC/EN 60947-7-1, Pollution Degree 3) and 24A, with an impulse withstand voltage of 8 kV. It has a single potential and four clamping units, with front-entry angled wiring for easy access. The gray housing includes center marking for clear identification.
Designed for industrial and building applications, the 280-646 is operated with an operating tool and requires a stripping length of 8-9 mm. It supports both copper and aluminum conductors.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.47 | $6.47 |
| 10+ | $4.59 | $4.59 |
| 25+ | $4.03 | $4.03 |
| 50+ | $3.69 | $3.69 |
| 100+ | $3.41 | $3.41 |
| 250+ | $3.12 | $3.12 |
| 500+ | $2.95 | $2.95 |
| 1,000+ | $2.82 | $2.82 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated voltage is 800 V per IEC/EN 60947-7-1, Pollution Degree 3.
The rated current is 24 A per IEC/EN 60947-7-1.
It accepts conductors from 0.08 mm² to 2.5 mm².
It uses CAGE CLAMP® spring clamp termination.
It has 4 positions (clamping units).
The pitch is 5.0 mm.
It mounts on DIN-rail 35 x 15 and 35 x 7.5 mm.
