| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
64 pcs
|
64 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuation Type | |
| Clamping Units | |
| Color | |
| Connectable Conductor Materials | |
| Connection Technology | |
| Current | |
| Housing Material | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Power Loss per Pole | |
| Rated Surge Voltage | |
| Resistance Value for Specified Current | |
| Strip Length | |
| Tape & Reel | |
| Terminal | |
| Termination Style | |
| Total Number of Potentials | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

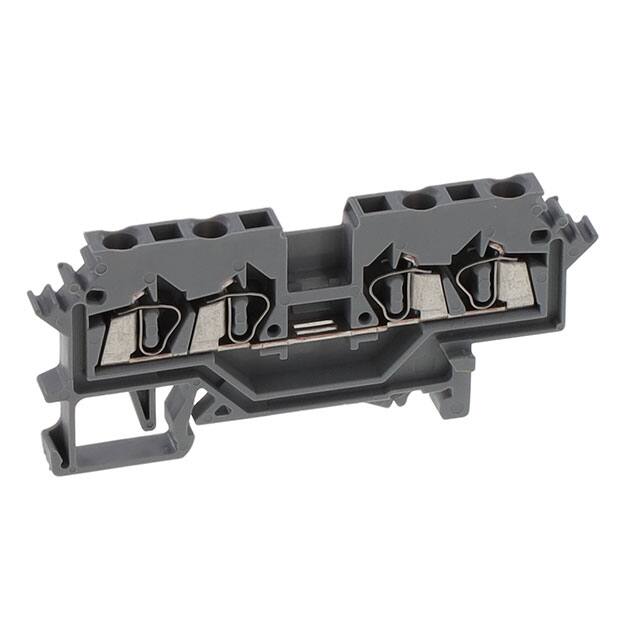

The Wago 280-621 is a 4-conductor through terminal block from the 280 series, designed for feed-through wiring in industrial and building applications. It accepts wire gauges from 0.08 mm² to 2.5 mm² and is rated for 800V and 24A per IEC/EN 60947-7-1. The terminal block uses CAGE CLAMP® push-in spring connection technology, enabling fast and reliable conductor termination without tools. It has four clamping units on a single level for connecting one potential. The gray housing is made of polyamide (PA66) and features lateral marker slots for identification. Mounting is on DIN rail 35 x 15 or 35 x 7.5 mm. The required strip length is 8-9 mm. Conductors of copper or aluminum can be connected via front-entry wiring.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.71 | $7.71 |
| 10+ | $5.47 | $5.47 |
| 25+ | $4.82 | $4.82 |
| 50+ | $4.41 | $4.41 |
| 100+ | $4.09 | $4.09 |
| 250+ | $3.75 | $3.75 |
| 500+ | $3.56 | $3.56 |
| 1,000+ | $3.41 | $3.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 4 positions (clamping units).
The pitch is 5.0 mm.
The rated current is 24 A.
The rated voltage is 800 V, with a rated surge voltage of 8 kV.
It mounts on DIN rail 35 x 15 and 35 x 7.5 mm.
It accepts wire from 0.08 mm² to 2.5 mm².
It uses CAGE CLAMP® push-in spring termination.
