| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
96 pcs
|
96 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuation Type | |
| Color | |
| Connectable Conductor Materials | |
| Connection Technology | |
| Current | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Power Loss per Pole | |
| Rated Impulse Withstand Voltage | |
| Resistance Value for Specified Current-Dependent Power Loss | |
| Strip Length | |
| Terminal | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range | |
| Wiring Direction |

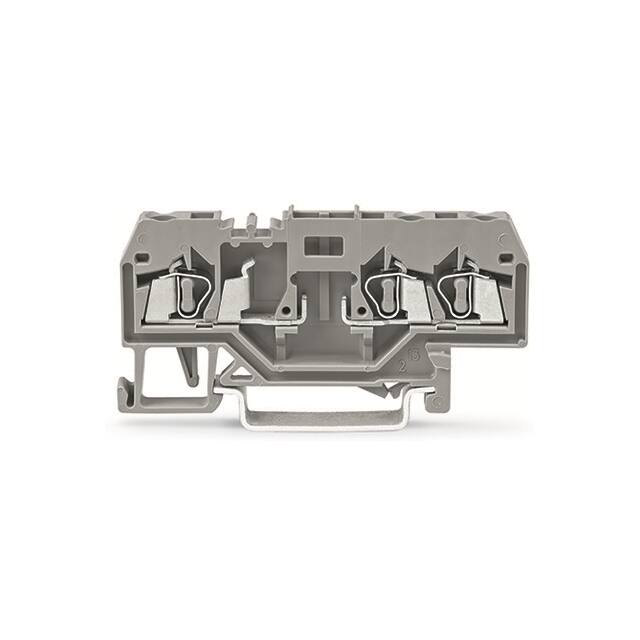

The Wago 280-610 is a 3-conductor carrier terminal block designed for DIN-rail mounting (35 x 15 and 35 x 7.5 mm). It features CAGE CLAMP® connection technology with push-in spring termination for fast and reliable wiring of solid or stranded conductors. The terminal block accepts wire sizes from 0.08 to 2.5 mm² and requires a strip length of 8-9 mm.
Electrical ratings include a nominal voltage of 400 V, rated current of 10 A, and a rated impulse withstand voltage of 6 kV per IEC/EN 60947-7-1. The power loss per pole is 0.133 W at rated current. The terminal block is suitable for copper and aluminum conductors and offers front-entry wiring for easy access.
The housing is gray and the component is designed for use with an operating tool for actuation. It is part of the Wago 280 Series and is RoHS3 compliant, with an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $11.18 | $11.18 |
| 10+ | $7.93 | $7.93 |
| 25+ | $7.01 | $7.01 |
| 50+ | $6.46 | $6.46 |
| 100+ | $6.01 | $6.01 |
| 250+ | $5.55 | $5.55 |
| 500+ | $5.29 | $5.29 |
| 1,000+ | $5.08 | $5.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated current is 10 A.
The nominal voltage is 400 V.
It accepts wire sizes from 0.08 to 2.5 mm².
The pitch is 5.0 mm.
It has 3 positions.
It is designed for DIN-rail mounting (35 x 15 and 35 x 7.5 mm).
It uses push-in spring termination (CAGE CLAMP®).
