| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuation Type | |
| Clamping Units | |
| Color | |
| Conductor Material | |
| Connection Technology | |
| Current | |
| Current Rating | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Overvoltage Category | |
| Pitch | |
| Pollution Degree | |
| Power Loss per Pole | |
| Resistance | |
| Strip Length | |
| Terminal | |
| Termination Style | |
| Total Potentials | |
| Type | |
| Voltage | |
| Voltage Rating (Nominal) | |
| Voltage Rating - Impulse | |
| Wire Gauge Range | |
| Wire Gauge or Range | |
| Wiring Direction |

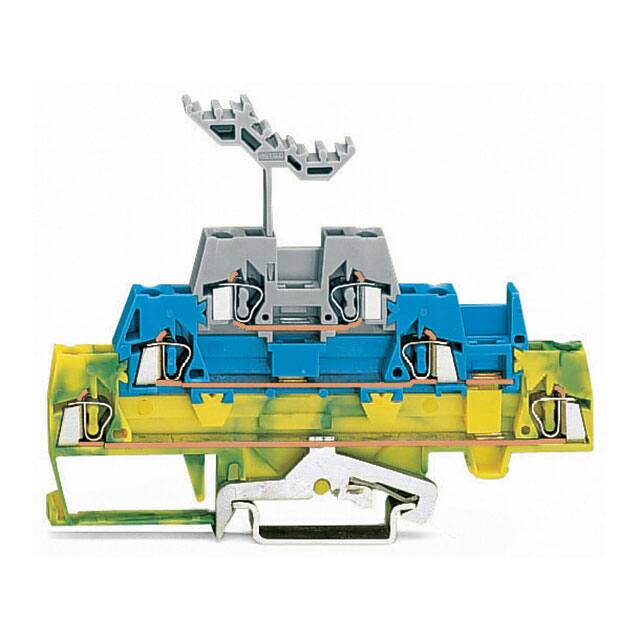

The Wago 280-547 is a triple-deck terminal block from the 280 Series, designed for DIN Rail mounting. It features CAGE CLAMP connection technology and supports conductor cross-sections from 0.08 mm² to 2.5 mm² with a recommended strip length of 8-9 mm. The block provides 6 clamping units across 3 levels, with one level serving as a ground terminal.
Electrical ratings per IEC/EN 60947-7-1 include a nominal voltage of 500 V, rated impulse withstand voltage of 6 kV, and a rated current of 20 A. Power loss per pole is 1.064 W at rated current, with a resistance of 0.00133 Ω. The overvoltage category is III and pollution degree is 3.
The terminal block is available in green-yellow, blue, and gray colors. It accepts copper and aluminum conductors and uses front-entry wiring with an operating tool for actuation.
| Qty | Low | High |
|---|---|---|
| 1+ | $35.41 | $35.41 |
| 10+ | $25.57 | $25.57 |
| 25+ | $23.03 | $23.03 |
| 50+ | $21.53 | $21.53 |
| 100+ | $20.34 | $20.34 |
| 250+ | $19.15 | $19.15 |
| 500+ | $18.47 | $18.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 5.0 mm.
The rated current is 20 A.
The nominal voltage is 500 V, with a rated impulse withstand voltage of 6 kV.
It is designed for DIN Rail mounting (35 x 15 and 35 x 7.5).
It has 6 positions (clamping units).
It supports conductors from 0.08 mm² to 2.5 mm².
It uses CAGE CLAMP spring connection technology.
