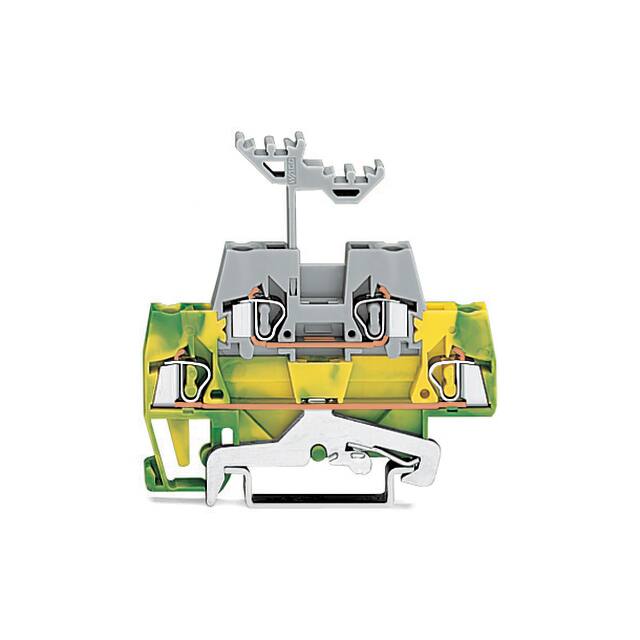

280-527 Wago 280-527 double-deck terminal block with ground conductor/through terminal block function. Rated 500 V, 20 A, accepts 0.08-2.5 mm² wire, CAGE CLAMP® connection.
Mfr Part #:

280-527

Available from 1 distributors
Mfr Name: Wago Corporation
Wago Corporation
Wago 280-527 double-deck terminal block with ground conductor/through terminal block function. Rated 500 V, 20 A, accepts 0.08-2.5 mm² wire, CAGE CLAMP® connection.
✓ Total Stock: 23 pcs
$ Price Range: $21.40

280-527 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
23 pcs
On Request
23 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

280-527 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Rated Current
Rated Voltage
Terminal
Termination Style
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

280-527 Description

Short technical summary and product information.

The Wago 280-527 is a double-deck terminal block that serves as both a through terminal block and a ground terminal block. It features CAGE CLAMP® connection technology for a safe and maintenance-free wire connection without the need for ferrule crimping.



This terminal block accepts wire cross-sections from 0.08 mm² to 2.5 mm² and requires a strip length of 8-9 mm. It is rated for 500 V (IEC/EN 60947-7-1) with a rated current of 20 A and a rated impulse withstand voltage of 6 kV. The power loss per pole is 0.532 W at rated current.



The 280-527 has 4 clamping units and 2 total potentials across 2 levels, with one level grounded. It is designed for front-entry wiring and is actuated with an operating tool. The terminal block mounts on DIN-rail 35 x 15 and 35 x 7.5 and is available in green-yellow/gray.

280-527 Quick Information

Product Type: Double-deck terminal block
Series: 280
Canonical Name: Double-deck terminal block; Ground conductor/through terminal block; 2.5 mm²; with marker carrier; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; green-yellow/gray
Subcategory: Feed Through

280-527 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

280-527 Estimated Pricing

Qty Low High
1+ $21.40 $21.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

280-527 Features

  • CAGE CLAMP® connection for maintenance-free wiring.
  • Rated 500 V and 20 A per IEC/EN 60947-7-1.
  • Accepts 0.08 to 2.5 mm² wire cross-section.
  • Double-deck with ground conductor function.
  • DIN-rail mount on 35 x 15 and 35 x 7.5.

280-527 Applications

  • Industrial control panel wiring and distribution.
  • Grounding and through-wiring in DIN-rail systems.
  • Building automation and electrical installations.
  • Machinery and equipment power distribution.

280-527 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the rated voltage and current of the Wago 280-527?

The rated voltage is 500 V and the rated current is 20 A per IEC/EN 60947-7-1.

What wire cross-section does the 280-527 accept?

It accepts wire cross-sections from 0.08 mm² to 2.5 mm².

What connection technology does the 280-527 use?

It uses CAGE CLAMP® connection technology with front-entry wiring.

How many positions and levels does the 280-527 have?

It has 4 positions and 2 levels, with one level grounded.

What is the pitch of the Wago 280-527?

The pitch is 5.0 mm.

What mounting type does the 280-527 support?

It mounts on DIN-rail 35 x 15 and 35 x 7.5.
